Hydraulic Servo Press Machine High Precious Positioning 600hpm Punching Frequency

China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
I'm Online Chat Now

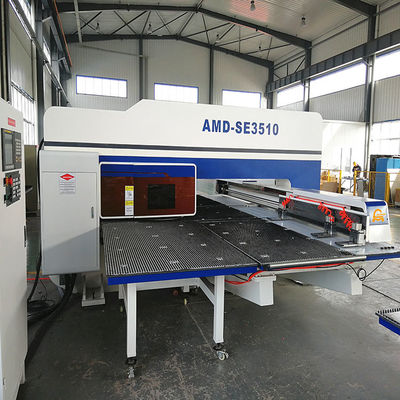

Hydraulic Servo Press Machine High Precious Positioning 600hpm Punching Frequency

Hydraulic Servo Press Machine High Precious Positioning 600hpm Punching Frequency
Hydraulic Servo Press Machine High Precious Positioning 600hpm Punching Frequency Hydraulic Servo Press Machine High Precious Positioning 600hpm Punching Frequency

Large Image :  Hydraulic Servo Press Machine High Precious Positioning 600hpm Punching Frequency

Product Details:

Place of Origin: China
Brand Name: Qingdao AMD
Certification: CE
Model Number: AMD-357

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Stretch film
Delivery Time: 35 workdays
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Detailed Product Description
Condition: New CNC Or Not: CNC
Power Source: Hydraulic Warranty: One Year
Punching Frequency: 600hpm Control Axis: 3-4
Power Rating: 20kw Type: Servo Type Punch Machine
High Light:

turret punch press machine

,

amada turret punching machine

AMD-357 Hydraulic CNC Turret Punching Machine for Sheet Metal Hole Punching



Feature:
1. Adopts Siemens 3/4 axis CNC special system and match up digital AC servo motor to make it fast and reliable;
2. Fuselage is O type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation;
3. With the second positioning function, can achieve without dead zone processing;
4. The transmission system use the international brand with high precision, big guide the ball screw, linear guide rail are high precision and good performance;
5. Main pneumatic components, electric components, hydraulic components and transmission adopt perfectly;
6. Use AMADA standards casting integrated thick turret mold disc and standards internationally general thick molds.

Specification Unit AMD-357
Transmission mode / Hydraulic
Punch force KN 300
Power rating KW 20
Processing sheet size MM 2500*1250
Processing sheet thickness MM ≤6
Max. Punch diameter MM Ø88.9
Sheet moving speed M/MIN 60
Punching frequency HPM 600
Hole accuracy MM ±0.1
Number of stations in turret disc No. 16/24/32
Turret rotational speed RPM 300
Controlled axis No. 3/4
Rotating location No. 0/2
Air pressure Mpa ≥0.8
Outline Dimension MM 4490*5300*2110
Machine Weight T 13

Workshop situation:



2018 hot sale ISO CE CNC mechanical turret punch press machine2018 hot sale ISO CE CNC mechanical turret punch press machine
