600hpm Frequency Servo Punch Press Turret Punch Press For Sheet Metal One Year Warranty

Large Image : 600hpm Frequency Servo Punch Press Turret Punch Press For Sheet Metal One Year Warranty

Product Details:

Place of Origin:	China
Brand Name:	Qingdao AMD
Certification:	CE
Model Number:	AMD-357

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Stretch film
Delivery Time:	35 workdays
Payment Terms:	L/C, T/T
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Warranty:	One Year	Condition:	New
Power Rating:	20kw	CNC Or Not:	CNC
Power Source:	Servo	Punching Frequency:	600hpm
Type:	Servo Type Punch Machine	Control Axis:	3-4
Highlight:	turret punch press machine , amada turret punching machine

High Quality CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency

600hpm Frequency Servo Punch Press Turret Punch Press For Sheet Metal One Year Warranty 0

· Equipped Fanuc 5 axis CNC system, Fanuc CNC punch servo module, can realize 5 axis control at the same time.

· Equipped with USB, R232 communication interface which can realize the front desk, backstage programming.

· Fuselage is O type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation. · Equipped high strength nodular cast iron to cast into integral thick turret mold plate, thickness is 80mm, through heat treatment to get rid of internal stress, rigid good, precision stability, impact resistant ability good; greatly improving mold service life. · Equipped with high precision servo initiative transmission system, speed is faster and stroke is adjustable. · With the second positioning function, can achieve processing without dead zone. · The transmission system use original Taiwan brand with high precision, big guide the ball screw, linear guide rail are high precision and good performance. ·Main pneumatic components, electric components, hydraulic components and transmission components adopt international well-known brand product, which makes the punch work perfectly. ·Equipped with concentrated lubricating device, reduce friction and improve service life. ·Equipped with 2 sets of

auto-index station, can easily punch holes with different degrees.


			Specification

			Unit

			Specification model

			Punch Force

			KN

			200

			300

Max.Processing Size

mm

			1250*1250

			1250*1250

			1250*2500

			1250*2500

			1250*5000

			1250*5000

			Max.Sheet Thickness

			mm

			4

			6

			Punching Frequency

			hpm

			1600

			1600

			Max.Sheet Traversing Speed

			m/min

			80

			80

			Turret Speed

			rpm

			40

			40

			Hole Accuracy

			mm

			±0.1

			±0.1

			Max Punch Diameter

			mm

			φ88.9

			φ88.9

			Number of stations in turret

			No.

			24/32

			24/32

			Air Pressure

			mpa

			0.8

			0.8

			Controlled Axis

			No.

			4(X,Y,C,A)

			4(X,Y,C,A)

			Prower Rating

			KW

			30

			35

			Outline Dimension

			mm

			4490*53300*2110

			4490*5300*2110

			Machine Weight

			T

			13

			14

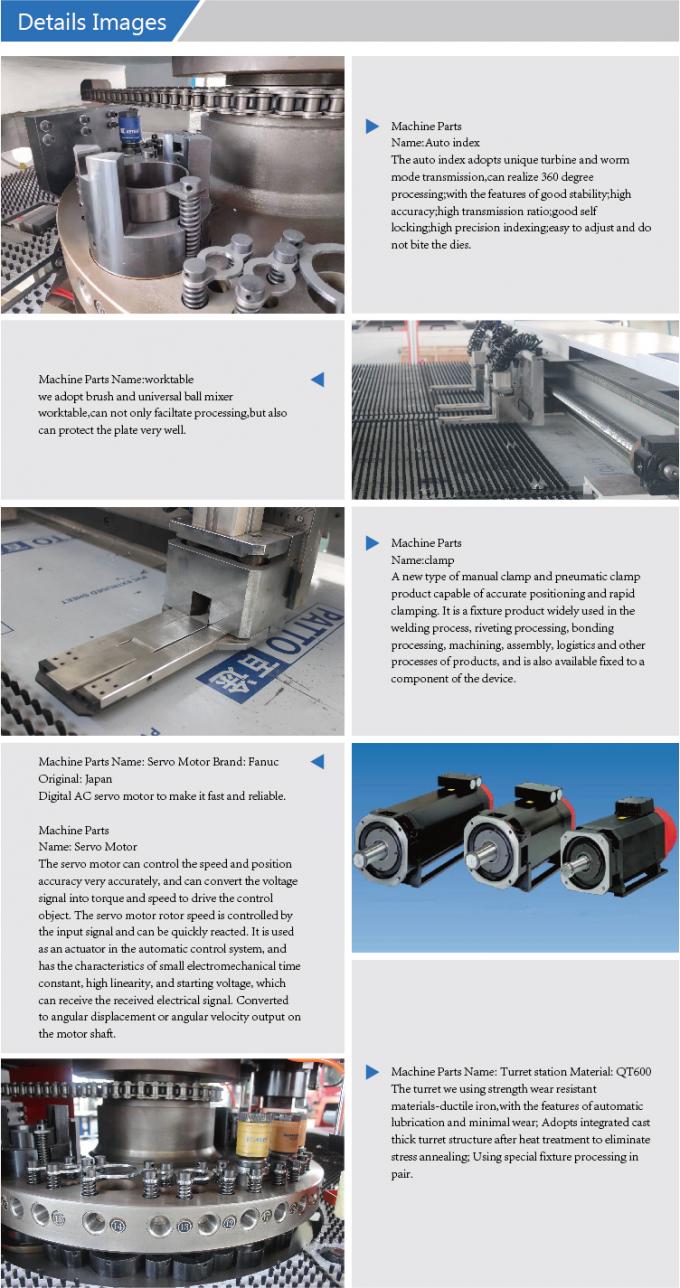

600hpm Frequency Servo Punch Press Turret Punch Press For Sheet Metal One Year Warranty 2

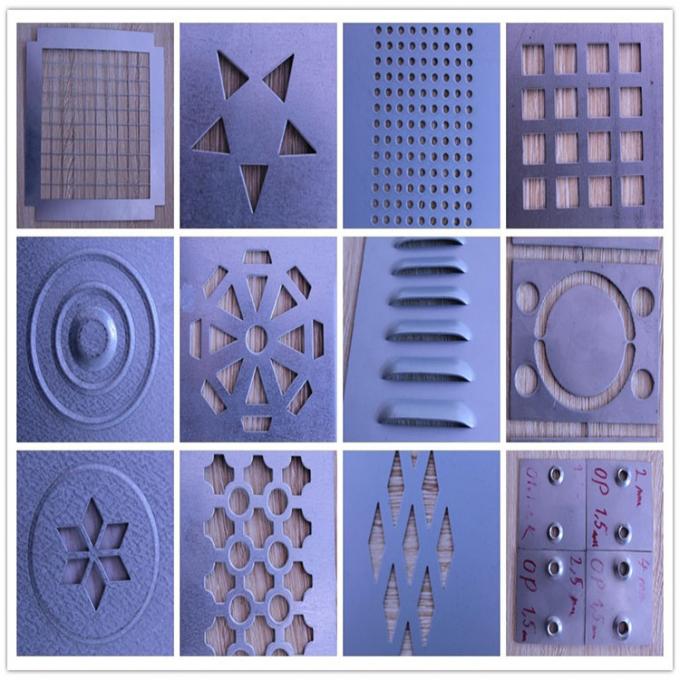

600hpm Frequency Servo Punch Press Turret Punch Press For Sheet Metal One Year Warranty 3

600hpm Frequency Servo Punch Press Turret Punch Press For Sheet Metal One Year Warranty 4

600hpm Frequency Servo Punch Press Turret Punch Press For Sheet Metal One Year Warranty 5

600hpm Frequency Servo Punch Press Turret Punch Press For Sheet Metal One Year Warranty 6

600hpm Frequency Servo Punch Press Turret Punch Press For Sheet Metal One Year Warranty 7

600hpm Frequency Servo Punch Press Turret Punch Press For Sheet Metal One Year Warranty 8
