120m2/H Road LCL FCL Concrete Shot Blasting Equipment

China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
I'm Online Chat Now

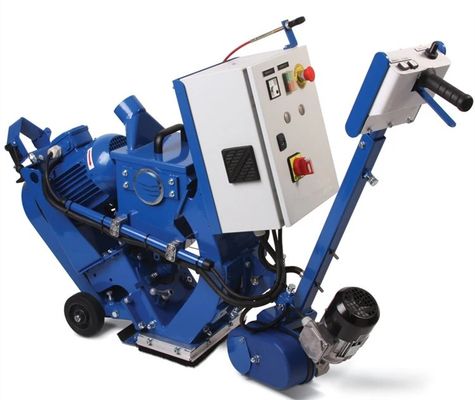

120m2/H Road LCL FCL Concrete Shot Blasting Equipment

120m2/H Road LCL FCL Concrete Shot Blasting Equipment
120m2/H Road LCL FCL Concrete Shot Blasting Equipment

Large Image :  120m2/H Road LCL FCL Concrete Shot Blasting Equipment

Product Details:

Place of Origin: China
Brand Name: Puhua
Certification: CE
Model Number: PHLM550

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Detailed Product Description
Power(W): Customizd Model Number: Road Shot Blasting Machine
Use: Shot Blast Cleaning Machine Load: LCL/FCL
Machine: Mobile Road Shot Blasting Machine Warranty: One Year
Name: CE Approved Factory Price Road Shot Blasting Machine For Processing Road Surface Color: Customizable
High Light:

FCL Concrete Shot Blasting Equipment

,

120m2/h Concrete Shot Blasting Equipment

,

23m/min Floor Shot Blaster

Small Portable Concrete Floor and Road Surface Sand Blasting Machine



120m2/H Road LCL FCL Concrete Shot Blasting Equipment 0

Shot blasting machine applied in highway surface cleaning blasts the pills on the road surface at high speed and certain angle by the method of mechinery , make pills impect the surface of the road and make the road surface roughness, reach the effect of removing residuum,at the same time,dust collector will produce negative pressure to make pills and impurities and dust dust recovery after air cleaning, intact pills will automatically be recycled to used, and impurities and dust will drop into the dust collecting box.



Purpose instruction:

1. Industrial floor coating and processing

2. Mark line processing

3. The airport line cleaning

4. Steel plate and steel structure surface clean treatment and rust remove

5. Concrete bridge surface treatment

6. Road surface anti-skid treatment, bleeding treatment

7. The airfield runway surface friction coefficient and texture restoration

8. Bridge nursing

9. The highway project conservation

10.The hull surface maintenance rust removing

11.Storage tanks conservation remove rust and paint

12. Epoxy resin floor clean

120m2/H Road LCL FCL Concrete Shot Blasting Equipment 1

Model PHLM270 PHLM550 PHLM600 PHLM800
Total Power 18kw 29kw 29kw 38kw
Effective cleaning width 240mm 550mm 600mm 800mm
Productivity on concrete 120m2/h 300m2/h 330m2/h 450m2/h
Blasting wheel quantity One Two Two Two
Traveling speed 0.5 - 23 m/min 0.5 - 25 m/min 0.5 - 25 m/min 0.5 - 20 m/min
Dust collecting type

Blowback

cartridge filters

Blowback

cartridge filters

Blowback

cartridge filters

Blowback

cartridge filters

Travel type

Horizontal,

self propelled

Horizontal,

self propelled

Horizontal,

self propelled

Horizontal,

self propelled

Overall dimension (mm) 1600×432×1016 2050×720×1460 2050×720×1460 2150×980×1450
Weight 335kg 595kg 630kg 685kg

The concrete shot blasting machine application
1. Concrete bridge surface treatment
  • Road surface shot blasting machine prepares concrete for recoating or application of overlays
  • Road surface shot blasting machine removes marking, dirt and old coatings
  • Road surface shot blasting machine prepares parking lots and garage decks Road shot blasting machine
  • Road surface shot blasting machine cleans factory and warehouse floors
  • Road surface shot blasting machine ideal for airport runways
  • Road surface shot blasting machine used on bridge decks and highways
  • Road surface shot blasting machine stencil patterns for decorative concrete applications
2. Steel bridge surface cleaning, anticorrosive coating pretreatment
  • Road shot blasting machine for marine industry: removes paint, rust and marine growth
  • Road shot blasting machine cleans ship and aircraft carrier decks
  • Road shot blasting machine removes nonskid coatings
  • Road shot blasting machine cleans offshore platforms
  • Road shot blasting machine prepares petroleum and water storage tank surfaces
  • Road shot blasting machine removes rust and paint
3. Blasting equipment cleaning the tunnel concrete pavement

4. Asphalt road surface sliding treatment
  • Road shot blasting machine removes tire rubber
  • Road shot blasting machine removes residue
  • Road shot blasting machine specializes in removing surface contamination
  • Road shot blasting machine improves skid resistance
  • Road shot blasting machine improves micro and macro textures

120m2/H Road LCL FCL Concrete Shot Blasting Equipment 2

120m2/H Road LCL FCL Concrete Shot Blasting Equipment 3

120m2/H Road LCL FCL Concrete Shot Blasting Equipment 4

120m2/H Road LCL FCL Concrete Shot Blasting Equipment 5

120m2/H Road LCL FCL Concrete Shot Blasting Equipment 6
