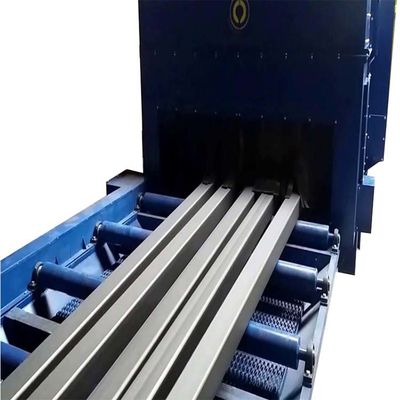

Q69 Roller Conveyor Shot Blasting Machine For Steel Plate and Steel Structures
1.The equipment adopt pneumatic control abrasive distribution system, which eliminate the blast wheel idling and injuring workers.
2.The machine adopt environment friendly high efficiency cartridge filter, dust collecting efficiency reach to 99.9%.
3.The blast cabinet is made of solid ZGMn13 steel guard plates. Blast part can be further protected by a wear-resistant shields made from manganese steel.
4. ZGMn13 steel guard plate, which is hard enough to deal with the shot blasting from 35HRC to more than 55HRC.
5. To avoid shot balls spatter when blast cleaning, several rubber layers are fitted in blast cabinet. One set shot blasting machine contains at least four sets of rubber layers curtain. The curtain layers have highly abrasive-resistant, can use 6 years.
This equipment is specially designed for cleaning the surface of the steel plate. It is a kind of roller conveyor passing type automatic shot blasting cleaning equipment, which makes the cleaned workpiece get a certain roughness of the clean surface, increase the adhesion of the paint film, improve the surface quality and anticorrosion effect. Using part of German technology and independent research and development technology, the technical performance of the equipment has reached the leading level in Asia.
| Parameter | Q6915 |
| The effective cleaning width (mm) | 1500 |
| Dimension of inlet opening (mm) | 1700*400 |
| The length of cleaning workpiece (mm) | 1200-12000 |
| The speed of conveyor (m/min) | 0.5-4 |
| The thickness of cleaning steel sheet (mm) | 1.5-60 |
| Shot ball flow rate (kg/min) | 4*250 |
| The shot ball first loading (kg) | 4000 |
| Roll brush adjusting height (mm) | 350 |
| Air capacity (m3/h) | 19000 |
| Total power (kw) | 113.5 |
|
1 |
Roller conveyor system |
Motor power | 3*2 KW |
| Roller diameter | 108 mm | ||
| Loading capacity | 1000 kg/m | ||
| Roller separation distance | 800 mm | ||
| Transporting speed | 0.5-6 m/min (frequency control) | ||
|
2 |
Shot blasting system |
Blasting chamber | Material of protective area: SPMn13 |
| Material of the chamber: Q235 | |||
| Auxiliary chamber | With rubber curtains for sealing the abrasive flying out of the chamber | ||
| Blasting wheel | Quantity: 10 units | ||
| Blade structure: Straight line | |||
| Blasting capacity: 10*180 kg/min | |||
| Power: 10*11 kw | |||
| Speed: 76 m/s | |||
|
3 |
Abrasive reclaim system |
Screw conveyor |
Conveying capacity: 120 T/H Screw diameter: 360 mm Power: 2*7.5 KW Quantity: 2 sets |
| Bucket elevator |
Lifting capacity: 120 T/H Lifting speed: 1.21 m/s Power: 11 kw Quantity: 1 set |
||
| Separator |
Quantity of separation: 120 T/H Air speed: 4-5 m/s Power: 7.5 kw Waste content: ≤1% (Full curtain and flow curtain type multistage winnowing) |
||
|
4 |
Dust removal system |
Filtering material | Polyester coated fitter cartridge |
| Quantity | 1 set | ||
| Fan power | 2*15 kw | ||
| Total pressure | 2000 pa | ||
| Ventilation volume | 26000 m3/h | ||
| Cartridge quantity | 24 pcs-(φ360x1000 mm) | ||
| Filtering area | 360 m2 | ||
| Dust falling way | Automatic back pulse | ||
| Filtering level | Fireproofing, Prevent spontaneous combustion | ||
| Filtering accuracy | 1 μm | ||
| Dust emission level | ≤80 mg/m3 | ||
| 5 | Electric control system | PLC, Low voltage electrical components, button | |
| 6 | Noise | ≤85 dB (Measure outside workshop) | |
| 7 | Others | Air pressure: 0.5-0.7 Mpa; First loading of steel shot: 4000 kgs (User prepare) | |
| 8 | Total electric power | About 190.5 kw | |
