Sandwich Panels Q26 Painting Booth PUHUA Sand Blasting Room

Sandwich Panels Q26 Painting Booth PUHUA Sand Blasting Room
Sandwich Panels Q26 Painting Booth PUHUA Sand Blasting Room

Large Image :  Sandwich Panels Q26 Painting Booth PUHUA Sand Blasting Room

Product Details:

Place of Origin: China
Brand Name: Qingdao Puhua
Certification: CE
Model Number: Q26

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude
Delivery Time: 30 workdays
Supply Ability: 10 sets per month
Detailed Product Description
Features: High Efficiency, Great Effect, Environmental Protection Type: Painting Room
Max. Workpiece Size: (L*W*H) 7*3.5*2.5 M Max. Workpiece Weight Max: 5T
Machine: Painting Booth/spray Booths Exported Countries: The USA, UK, Russia, Australia, UAE, Mexico, Brasil, Etc...
Chamber Material: Steel Plate Or Sandwich Panels
High Light:

PUHUA Sand Blasting Room

,

Painting Booth Sand Blasting Room

,

Q26 Sand Blasting Room

PUHUA Sand Blasting Room/ Shot Blasting Chamber / Abrasive Blasting Cabinet For Sale

Automotive electrostatic car painting equipment/booth

Sandwich Panels Q26 Painting Booth PUHUA Sand Blasting Room 0

1 Max. Workpiece size (L*W*H) 7*3.5*2.5 m
2 Max. Workpiece weight Max. 5 T
3 Finish level Can achieve Sa2-2 .5 (GB8923-88)
4 Processing speed 30-60 m3/min (Operator start different blasting guns quantity)
5 Surface roughness 40~75 μ (Depend on abrasive size)
6 Suggest abrasive Grinding steel shot, Φ0.5~1.5
7

Sand blasting room inside

dimension (L*W*H)

15*8*6 m
8 Electric power supply 380V, 3P, 50HZ or customized
9 Pit requirement Waterproof


Sandwich Panels Q26 Painting Booth PUHUA Sand Blasting Room 1

1.Application
Sand blasting room is a specially designed machine used in the surface cleaning for high and large jobs.



2.Components and function
Q2610 Sand blasting room mainly includes Blasting chamber, Shotblasting tank, Abrasive circulation system, Lighting system, 3D operating table, Dust Collector, Trolley system, Electric control system and other parts. The surface finish level can achieve Sa2.5.

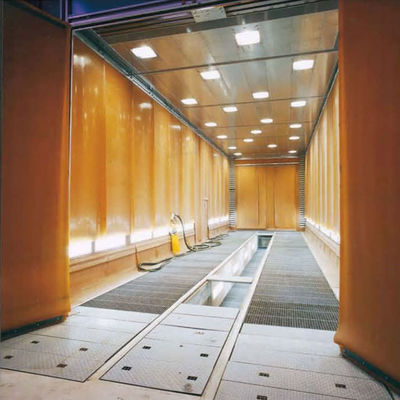

2.1 Blasting chamber

Blasting body is made of sandwich composite panels and rectangular steel frame, it is a strong, seal and spacious operation space to clean the workpiece. Blasting chamber is consist of body shell, left and right side wall, lateral wall, roof, rubber protection plate, etc.

It is equipped with 40 LED lamps (all lamps are defended by stainless steel protective net), inner light brightness can achieve 600 Lux. The blasting chamber is protected by 4 mm white wear resistant rubber plate which has high wear resistant performance. This can prolong the service life, reduce noise. The door is manually door, on side of blasting chamber has one set of emergency door.



2.2. Blasting assembly

Blasting assembly is composed of 1 set 0.6 m3 sandblasting tank, sprayer pipe, jet nozzle and pneumatic
components, etc. It is used for continuous operation with sand blast wheel, nozzle using boron carbide material, sprayer pipe is 20 m length, and the production of tank with pressure vessel certificate. Equipped 2 sets air conditioning protective clothing.



2.3 Abrasive circulation system
This machine used materials circulation purification equipment including shot circulatory system and abrasive separation purification system, is made up by screw conveyor, bucket elevator, separator, abrasive supply valve, conveying shot tube, etc.

Sandwich Panels Q26 Painting Booth PUHUA Sand Blasting Room 2

Sandwich Panels Q26 Painting Booth PUHUA Sand Blasting Room 3

Sandwich Panels Q26 Painting Booth PUHUA Sand Blasting Room 4

Sandwich Panels Q26 Painting Booth PUHUA Sand Blasting Room 5

Sandwich Panels Q26 Painting Booth PUHUA Sand Blasting Room 6

Sandwich Panels Q26 Painting Booth PUHUA Sand Blasting Room 7
