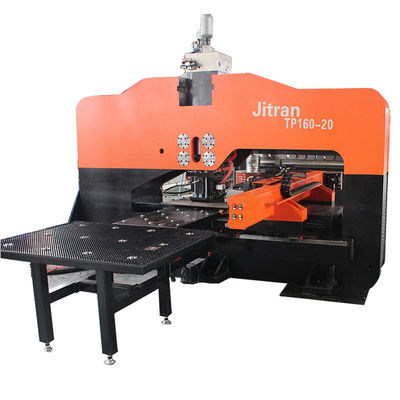

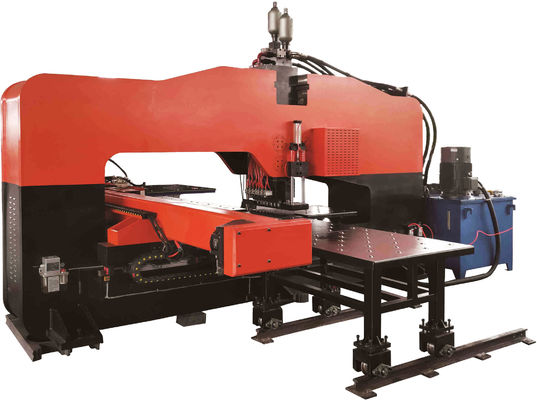

160T 20mm Metal Plate Hydraulic Type CNC Punching Machine

160T 25mm Thick Plate Sheet Metal Hole Punch Cnc Punching Machine

AMD-HB Thick Plate CNC Punching Machine Main Features

• Using in-line type die set which researched and developed by our company, matching with thick plate stamping dedicated mould, the processing sheet thickness can up to 16mm;

• Equipped with high precision hydraulic main transmission system, speed is faster, stroke is adjustable;

• Adopts Siemens CNC special system and match up digital AC servo motor to make it faster and reliable, operation is easy, no need manual programming and processing, with the second positioning function, can achieve no dead zone processing;

• Equipped with concentrated lubricating device, reduce each kinematic pair friction, improve machine service life.

Maximum thickness 35mm

Using in-line type die st which researched and developed by our company,matching with thick plate stamping dedicated mould. the processing sheet thickness can up to 35mm.

AC servo motor

Using ESTUN servo motor, fast speed, fast response, simple operation, without manual programming, one-key operation.
