Heavy Duty Special CNC Punching Machine For 6-30 mm Thick Plate Hole Punching

China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
I'm Online Chat Now

Heavy Duty Special CNC Punching Machine For 6-30 mm Thick Plate Hole Punching

Heavy Duty Special CNC Punching Machine For 6-30 mm Thick Plate Hole Punching
Heavy Duty Special CNC Punching Machine For 6-30 mm Thick Plate Hole Punching Heavy Duty Special CNC Punching Machine For 6-30 mm Thick Plate Hole Punching Heavy Duty Special CNC Punching Machine For 6-30 mm Thick Plate Hole Punching Heavy Duty Special CNC Punching Machine For 6-30 mm Thick Plate Hole Punching

Large Image :  Heavy Duty Special CNC Punching Machine For 6-30 mm Thick Plate Hole Punching

Product Details:

Place of Origin: China
Brand Name: Qingdao Amada
Certification: CE
Model Number: AMD-H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Stretch film
Delivery Time: 30 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Detailed Product Description
Plate Thickness: 10-30mm Driven: Hydraulic
Warranty: 12 Months Color: Customizable
CNC Or Not: CNC
High Light:

amada cnc turret punching machine

,

turret press machine

Heavy Duty Special CNC Punching Machine For 6-30 mm Thick Plate Hole Punching

Heavy Duty Special CNC Punching Machine For 6-30 mm Thick Plate Hole Punching 0

Product Description

Features:
1. Welding lathe bed overall tempering treatment, eliminate stress; Flank movement of feeding platform reduce the friction between the plate and platform, increase the level and support gender of machine.

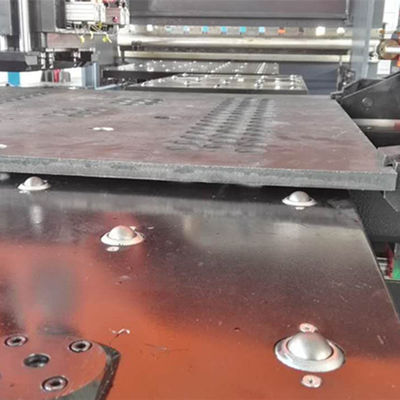

2. Adjustable clamp, clamp clamping force is strong, also can protect the plate, avoid strain scratch; Universal ball workbench, The supporting effect is good.
3. Motor cable with shielding, which can effectively prevent interference, and has a substantial set of protection, prevent oil, waterproof, prevent pollution; Main electrical components placed in the electrical box, prevent wire outside leakage, both safe and convenient in maintenance and protection.
4. Lathe bed guide spacing 1600mm, this width for domestic leading with patent levels, the ultra width guide spacing and guarantee the machine design the operation stability, and to ensure the machining accuracy of big plate thickness plate, the vibration aging, eliminate stress, deformation, guarantee the long-term stability of the machine.



Product specification:

No. Specification Parameter
1 Transmission mode Hydraulic
2 Punch Force 800-2000KN
3 Power Rating 15-50 KW
4 Max. Processing Size

3000*1500mm

6000*1500mm (Second position)

5 Max. sheet Thickness ≤20 (carbon steel)
6 Max. Punch Diameter Φ80mm
7 Max. Traversing Speed 30m/min
8 Stamping stroke 100mm
9 Ram stroke 35mm
10 Throat depth 1500mm
11 X/Y axis stroke

X=3000mm

Y=1500mm

12 Punching Frequency 50-100hpm
13 Hole Accuracy ±0.1mm
14 Number of stations 2-12 stations
15 Max.loading weight 600kg
16 Controlled Axis 2 axis
17 Air Pressure ≥0.6mpa
18 Quantity of clamps 3
19 Clamp construction All-floating
20 Reposition device Yes
21 CNC system Siemens
22 Heat treatment of frame Annealing
23 RS232C communication interface Yes
24 Machine Weight 8-20Ton
25 Power specification 380V,50HZ, 3Phase or customized
26 Overall Dimensions 7000*5500*2710 mm or customized



Detailed Images
special hole cnc punching machine for thick plate CNC PUNCH PRESS

Industrial computer (industrial PC) system, adopting AMADA cnc processing software, can achieve field programming, backstage programming; 19 village brand LCD monitor, the picture is more clear and beautiful.

Heavy Duty Special CNC Punching Machine For 6-30 mm Thick Plate Hole Punching 2

Special design Stamping subject , mould oriented long, rigid good deformation small, can achieve inch move, continuous, a single operation, use convenient and reliable, low noise and long life.


After-Sales Service

1. Installation and commissioning issue: We will send 1-3 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet, etc. Customer need arrange 3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full english documents: including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience : Many countries, such as UAE, Egypt, Venezuela, India, Argentina, Paraguay, etc.
