High Speed Servo Punch Press , Hydraulic Cnc Turret Punch Machine One Year Warranty

China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
I'm Online Chat Now

High Speed Servo Punch Press , Hydraulic Cnc Turret Punch Machine One Year Warranty

High Speed Servo Punch Press , Hydraulic Cnc Turret Punch Machine One Year Warranty
High Speed Servo Punch Press , Hydraulic Cnc Turret Punch Machine One Year Warranty High Speed Servo Punch Press , Hydraulic Cnc Turret Punch Machine One Year Warranty High Speed Servo Punch Press , Hydraulic Cnc Turret Punch Machine One Year Warranty

Large Image :  High Speed Servo Punch Press , Hydraulic Cnc Turret Punch Machine One Year Warranty

Product Details:

Place of Origin: China
Brand Name: Qingdao AMD
Certification: CE
Model Number: AMD-357

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Stretch film
Delivery Time: 35 workdays
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Detailed Product Description
Condition: New CNC Or Not: CNC
Power Source: Hydraulic Warranty: One Year
Punching Frequency: 400-600 Hpm Control Axis: 3-4
Machine Weight: 11T Outline Dimension: 4490*5300*2110mm
High Light:

turret punch press machine

,

amada turret punching machine

AMD-357 Hydraulic CNC Turret Punching Machine for Sheet Metal Hole Punching



Hydraulic press machine main specification:
Specification Unit AMD-357
Transmission mode / Hydraulic Mechanical
Punch force KN 300
Power rating KW 20 11
Processing sheet size mm 2500*1250 2500*1250
Processing sheet thickness mm ≤6 ≤4
Max. Punch diameter mm Ø88.9 Ø88.9
Sheet moving speed m/min 40 40
Punching frequency hpm 600 300
Hole accuracy mm ±0.1 ±0.1
Number of stations in turret No. 16/24/32 16/24/32
Turret speed rpm 30 30
Controlled axis No. 3/4 3/4
Rotating location No. 0/2 0/2
Air pressure Mpa ≥0.8 ≥0.8
Outline Dimension mm 4490*5300*2110 4490*5300*2110
Machine Weight T 11 10



Notice:

According to your requirement, the most suitable machine will be designed for your workpieces, please indicate the following details.

1. What is your sheet metal material?

2. The workpiece size, length, width and thickness.

3. How many hole shapes and hole diameter?

Based on these information, the detailed technical proposals will be sent to you for reference.

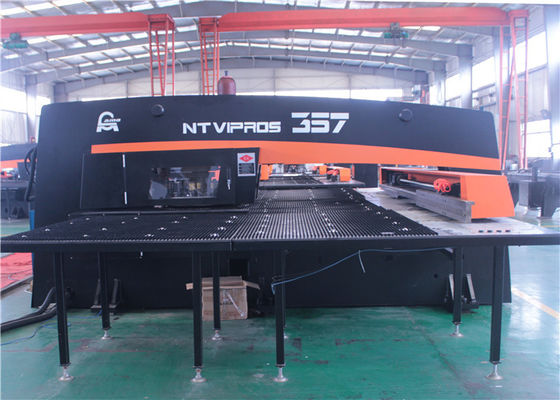

High Speed Servo Punch Press , Hydraulic Cnc Turret Punch Machine One Year Warranty 0

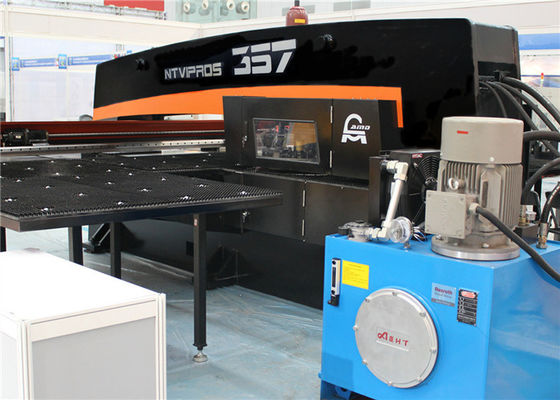

High Speed Servo Punch Press , Hydraulic Cnc Turret Punch Machine One Year Warranty 1



Advantages:

1. Inspected by the Inspection Institution of Bureau Veritas Certification.

2. 100% QC inspection Before Shipment.

3. Customized, Meet your needs.

4. Good stability, Low failure rate (technical maturity, technical precipitation, skilled workers),Exquisite appearance (mature craft).

5. Large factories, Prompt delivery.

6. Strict quality inspection department.

7. Over 10 years' production experience.

8. Professional design team to serve you.

9. CE certificate assure you our quality.



Main configuration:
1. Control system: SIEMENS
2. Servo motor: YASKAWA(from Japan)
3. Servo amplifier: YASKAWA(from Japan)
4. Percision liner roller rail: ABBA( from Taiwan)
5. Electric parts: OMRON



Key point :

1. Production time: 35 workdays CNC punch machine.
2. Installation and commissioning time: 7-14 days.
3. Installation and commissioning issue: We will send 1,2 technicians to assist machine installation and commissioning, customer pays for their tickets, hotel and diet.
4. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
5. Payment term: 30% as down payment, 70% balance before delivery or L/C at sight.
6. We supply full english documents, including general installation drawing, pit design drawing, manual book, electric wiring diagram, electric manual book and maintenance book, etc.



Trade Information:

MOQ: 1set.

Settlement Currency: USD, RMB, EUR.

Trade mode: FOB (FCA), CIP, CFR, CIF, DDU, DDP, Turnkey.

Payment term: 30% deposit by T/T, the balance paid before delivery or L/C at sight.

Delivery time: Within 15-40 days according to different type hydraulic press machine.



After-sale service:
1. Installation and commissioning issue of hydraulic press machine: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet. Customer need prepare installation machinery and tools.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
