|Machine:||Roller Conveyor Shot Blasting Machine||The Advantages:||Compact Structure And High Productivity|
|Experience:||Over 20 Years Design And Produce Experience||Type:||Roller Conveyor|
|Spare Parts:||Cr20S High Chrome, ZGMn13, Etc||Exporting Countries:||More Than 70 Countries|
blast cleaning equipment,
dustless blasting equipment

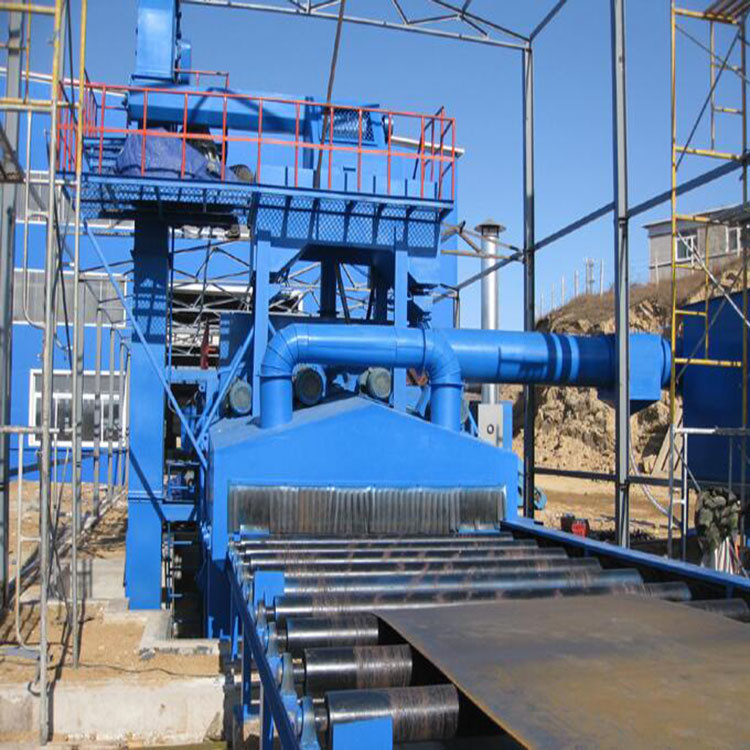

Pass Through Steel Profile Industrial Shot Blasting Machine Compact Structure
Q69 Steel Profiles shot blasting machines are used to remove scale and rust from metal profiles and sheet metal components. It applies to surface rusting and painting art ofshipping,car,motorcycle,bridge,machinery,etc.By combining a roller conveyor with the appropriate crossover conveyors, individual process steps such as blasting, conservation, sawing and drilling can be interlinked. This ensures a flexible manufacturing process and high material output.
|The effective cleaning width (mm)||1500||2000||2500||3000||4000|
|Dimension of inlet opening (mm)||1700*400||2200*400||2700*800||3200*800||4200*400|
|The length of cleaning workpiece (mm)||1200-12000||1200-12000||3000-12000||2400-12000||4500-18000|
|The speed of conveyor (m/min)||0.5-4||0.5-4||0.5-4||0.5-4||0.5-4|
|The thickness of cleaning steel sheet (mm)||1.5-60||3-60||3-60||3-110||4.5-100|
|Shot ball flow rate (kg/min)||4*250||6*250||6*250||6*360||8*360|
|The shot ball first loading (kg)||4000||4500||4500||8000||11000|
|Roll brush adjusting height (mm)||350||450||600||850||900|
|Air capacity (m3/h)||19000||19550||27758||28050||38000|
|Total power (kw)||113.5||156.6||204.8||224.55||293.6|
Strong point of this series shot blasting machines:
1. Improve the corrosion resisting ability of machinery products and metal materials.
2. Improve bonding strength of steel surfaces and coatings.
3. Increase the anti-fatigue capability of metal products and extend its life.
4. Optimize the craftwork state of steel surface.
5. Greatly enhance the efficiency of cleaning.
6. Reduce the labor intensity of cleaning works.
7. Reduce the environment pollution.
Steel Structure Shot Blasting Machines Features:
1. Pass through shot blasting machine has three kinds of pass through type: Roller conveying pass through, trolley pass through, hanger pass through.
2. They are widely used in the industry of steel plate, steel structure, engineering machinery, bridge building and so on. By shot blasting, it can remove rust, oxide layers, welding slag and other pollutant and eliminate surface stress force.
3. After shot blasting, it can improve paint film adhesion with steel, improve anti-rust capacity, improve the quality and prolong the service life of steel structure.
4. The steel shots blasted by blasting turbines will be collected, purifying by shots circle system and continue to be used again for blasting turbines.
5. The working process flow of shots circle system: steel shots blasted by blasting turbines will be collected by portrait screw conveyor and delivered to bucket elevator then the bucket elevator will lift to air wash type separator.
6. After separating, the dust and broken steel shots will be removed away from steel shots and good steel shots will enter storage bin.
Name: turbine blast wheels
Name: Roller conveyor
Settlement Currency: USD, RMB, EUR.
Trade mode: FOB (FCA), CIP, CFR, CIF, DDU, DDP, Turnkey.
Payment term: 30% deposit by T/T, the balance paid before delivery or L/C at sight.
Delivery time: Within 15-40 days according to different type machine.
