Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption

China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
I'm Online Chat Now

Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption

Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption
Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption

Large Image :  Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption

Product Details:

Place of Origin: China
Brand Name: Qingdao Puhua
Certification: CE
Model Number: Q32

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Stretch film
Delivery Time: 7-20 days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Detailed Product Description
Type: Portable Shot Blasting Machine Machine: Tumble Belt Shot Blasting Machine
Loading: Container Power(W): Customizd
Industrial Experience: Over 20 Years Color: Customers Requirement
Model Number: Shot Blasting Machine
High Light:

tumble blast machine

,

tumblast shot blasting machine

Rubber Mesh Tumble Belt Shot Blasting Machine Q32 Series Low Energy Consumption


This series is used for surface cleaning,rust removing,product intensifying for all kinds of medium and small casting,forging and machinings.It is suitable for different process scale,can work single or medium and small sizes workpieces.
Q32 Series tumble belt shot blasting machine has advantages of advanced design,reasonable structure,low energy consumption and high efficiency.

Shot blasting machine is a cleaning effect , compact structure, low noise, complete and good cleaning equipment, has the following characteristics:
1. The machine uses cantilever centrifugal blast wheel, has a long life, simple structure and other characteristics.
2. By full curtain winnowing abrasive mixture separator, with good separation effects and higher productivity, has a positive effect to improve the life of the blasting blade.
3. Use wear-resistant rubber track, decreasing workpiece collision damage phenomenon and then reduce the noise of the machine.
4. Use pulse dust collector, dust can be collected in the dust hopper or exclude to outdoors, improve the labor environment.


Tumblast shot blasting machine specification:

Item Unit Q326 Q3210
Productivity kg/h 600-1200 2500-3500
Feeding amount Kg 200 800
Maximum weight of single piece Kg 15 30
End plate diameter mm 650 1000
Effective volume m3 0.33 1.05
Abrasive flow rate Kg/min 200 250
Dust removal air volume m3/h 2500 4000
Power consumption kw 13.6 25.6
Outside dimension mm 3200*1650*3800 4290*1950*4500

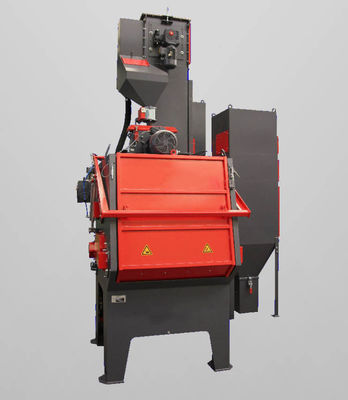

Shot blast picture:



Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption 0

Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption 1



Centifications:

Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption 2



Company Profile:

Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption 3


Service:

1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet, etc Customer need arrange 3-4 skilled worker and prepare insallation machinery and tools.

2. Warranty time: 12 months from date of commissioning completion, but no more than 18 months from date of delivery.

3. Supply full English documents: including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.



Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption 4



Customer photos:



Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption 5



Product Packaging:



Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption 6Rubber Mesh Tumble Shot Blasting Machine Q32 Series Low Energy Consumption 7

Why us?
1.Owned factory, better quality control
2.Rich experienced in manufacturing and exporting
3.Competitve price and reliable oversea after-sale network
Notice
According to your requirements, the most suitable machines will be designed for your work piece, please indicate the following details.
A. What kind of work piece will you clean?
B. The work piece diameter(length, width, height) and weight of maximum work piece.
C. How many work pieces you want to clean per day/month?
Based on above detail information, the detailed technical proposals will be sent to you for reference.
