|The Advantages:||Compact Structure And High Productivity||Machine:||Roller Conveyor Shot Blasting Machine|
|Exporting Countries:||More Than 70 Countries||Spare Parts:||Cr20S High Chrome, ZGMn13, Etc|
|Name:||High Speed Steel Profiles Industrial Shot Blasting Machine For Sheet Metal||Experience:||Over 20 Years Design And Produce Experience|
|Type:||Roller Conveyor||Key Words:||Roller Conveyor Shot Blasting Machine|
Pneumatic Shot Blasting Machine,
Roller Conveyor Shot Blaster

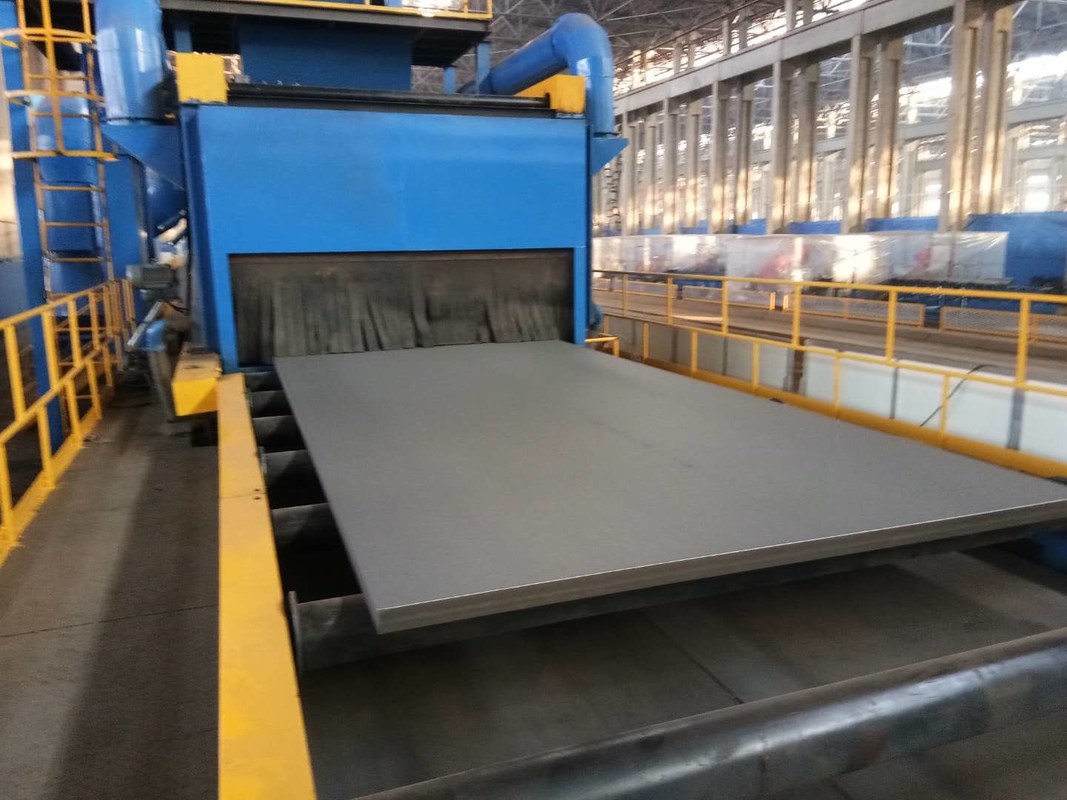

Q69 Roller Conveyor Shot Blasting Machine For Steel Plate and Steel Structures
1.The equipment adopt pneumatic control abrasive distribution system, which eliminate the blast wheel idling and injuring workers.
2.The machine adopt environment friendly high efficiency cartridge filter, dust collecting efficiency reach to 99.9%.
3.The blast cabinet is made of solid ZGMn13 steel guard plates. Blast part can be further protected by a wear-resistant shields made from manganese steel.
4. ZGMn13 steel guard plate, which is hard enough to deal with the shot blasting from 35HRC to more than 55HRC.
5. To avoid shot balls spatter when blast cleaning, several rubber layers are fitted in blast cabinet. One set shot blasting machine contains at least four sets of rubber layers curtain. The curtain layers have highly abrasive-resistant, can use 6 years.
This equipment is specially designed for cleaning the surface of the steel plate. It is a kind of roller conveyor passing type automatic shot blasting cleaning equipment, which makes the cleaned workpiece get a certain roughness of the clean surface, increase the adhesion of the paint film, improve the surface quality and anticorrosion effect. Using part of German technology and independent research and development technology, the technical performance of the equipment has reached the leading level in Asia.
|The effective cleaning width (mm)||1500||2000||2500||3000||4000|
|Dimension of inlet opening (mm)||1700*400||2200*400||2700*800||3200*800||4200*400|
|The length of cleaning workpiece (mm)||1200-12000||1200-12000||3000-12000||2400-12000||4500-18000|
|The speed of conveyor (m/min)||0.5-4||0.5-4||0.5-4||0.5-4||0.5-4|
|The thickness of cleaning steel sheet (mm)||1.5-60||3-60||3-60||3-110||4.5-100|
|Shot ball flow rate (kg/min)||4*250||6*250||6*250||6*360||8*360|
|The shot ball first loading (kg)||4000||4500||4500||8000||11000|
|Roll brush adjusting height (mm)||350||450||600||850||900|
|Air capacity (m3/h)||19000||19550||27758||28050||38000|
|Total power (kw)||113.5||156.6||204.8||224.55||293.6|
Strong point of this series shot blasting machines:
1. Improve the corrosion resisting ability of machinery products and metal materials.
2. Improve bonding strength of steel surfaces and coatings.
3. Increase the anti-fatigue capability of metal products and extend its life.
4. Optimize the craftwork state of steel surface.
5. Greatly enhance the efficiency of cleaning.
6. Reduce the labor intensity of cleaning works.
7. Reduce the environment pollution.
Steel Structure Shot Blasting Machines Features:
1. Pass through shot blasting machine has three kinds of pass through type: Roller conveying pass through, trolley pass through, hanger pass through.
2. They are widely used in the industry of steel plate, steel structure, engineering machinery, bridge building and so on. By shot blasting, it can remove rust, oxide layers, welding slag and other pollutant and eliminate surface stress force.
3. After shot blasting, it can improve paint film adhesion with steel, improve anti-rust capacity, improve the quality and prolong the service life of steel structure.
4. The steel shots blasted by blasting turbines will be collected, purifying by shots circle system and continue to be used again for blasting turbines.
5. The working process flow of shots circle system: steel shots blasted by blasting turbines will be collected by portrait screw conveyor and delivered to bucket elevator then the bucket elevator will lift to air wash type separator.
6. After separating, the dust and broken steel shots will be removed away from steel shots and good steel shots will enter storage bin.
Settlement Currency: USD, RMB, EUR.
Trade mode: FOB (FCA), CIP, CFR, CIF, DDU, DDP, Turnkey.
Payment term: 30% deposit by T/T, the balance paid before delivery or L/C at sight.
Delivery time: Within 15-40 days according to different type machine.
