Steel pipe outer wall shot blasting machine cleaning machine

China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
I'm Online Chat Now

Steel pipe outer wall shot blasting machine cleaning machine

Steel pipe outer wall shot blasting machine cleaning machine
Steel pipe outer wall shot blasting machine cleaning machine Steel pipe outer wall shot blasting machine cleaning machine Steel pipe outer wall shot blasting machine cleaning machine Steel pipe outer wall shot blasting machine cleaning machine

Large Image :  Steel pipe outer wall shot blasting machine cleaning machine

Product Details:

Place of Origin: Shandong,China
Brand Name: Qingdao PUHUA
Certification: ce
Model Number: PH

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude
Delivery Time: 20-40 workdays
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Detailed Product Description
Color: Customized Name: Steel Pipe Outer Wall Shot Blasting Machine Cleaning Machine
Type: Steel Pipe And Tube Shot Blast Cleaning Service System: Field Installation, Commissioning And Training
Fuel: Electric Power (watt): Cutomizable
Applicable Industry: Building Material Shops,Manufacturing Plant
High Light:

30mm Fiber Laser Cutting Machine

,

1000w Fiber Laser Cutting Machine

,

Water Cooling CNC Punching Machine

Abrator/Shot Blasting Machine For Inner And Outer Wall Of Steel Tube Cleaning Rust Remove

Steel Pipe Small Shot Blast Cleaning Equipment Rust Removing Machine



Steel Sheet Steel Pipe And Tube Shot Blasting Cleaning Polishing Machine With CE ISO Certification

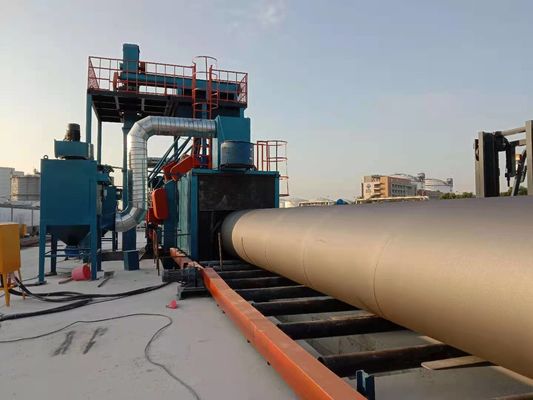

Steel pipe outer wall shot blasting machine cleaning machine 0



Steel pipe outer wall shot blasting machine cleaning machine 1



The machine is mainly applicable to shot blasting cleaning machine, specially used for steel pipes. It can impose shot blasting on the original surface of cylinder to remove the PVC,epoxy coating ,rust layer and oxide skin, in order to get a uniform metallic luster surface with certain smooth finish, so as to remove stress and improve surface coating quality and corrosion-resistant of the cylinder .

The main characteristics of the machine as follows:

1. The shot blasting machine adopts the down-up shot blasting mode. As steel pipes are of different diameters, their bottoms are at roughly the same height when conveyed on rollers. The shot blasting machine ejects shots in a down-up manner, and the distances between shots and the surface of steel pipes are basically the same, namely, the cleaning efficiency is uniformity.

2. Work pieces continuously pass through the entrance and exit of the shot blasting machine. Because of large difference in the cleaning diameters of steel pipes, and in order to prevent shots from flying outside, the machine uses multi-layer replaceable seal plates, so as to realize the complete sealing of the shots.

3. The centrifugal, hanging-arm, novel, effective and multifunctional shot blasting wheel impeller is adopted, which has a large shot blasting quantity, high efficiency, and rapid replacement of blades. It also has the function of integral replacement, and easy maintenance.

4. The adoption of full-curtain BE mode shot-residue separation machine, greatly increases the volume and efficiency of separation, and shot blasting quality, and reduces the wear of the shot blasting machine.



Steel pipe and tube cleaing rust remove shot blasting machine product parameters



Item Model QG30
Dimension of cleaning workpiece(mm) Φ50-¢500*(6000-10000)
Roller speed(m/min) 1.0-3.0
Blast wheel Abrasive flow rate(kg/min) 2*250
Power(kw) 2*15
Dust collector Model BC-36
Ventilation capacity(m3/h) 5000-7000
Total power(excluding dust collector)(kw) 49.45
Overall dimension(excluding dust collector) (15000-22000)*3100*5400


Advantage:

a. High quality surface appearance
b. High productivity efficiency
c. Low cost
d. Environmental friendly









1



Grooves conveyor rollers system

Consist of Inlet and outlet roller, Chamber inside roller
    Roller distance 1000 mm
    Reducer power 2*3 kw
    Loading capacity 800 kg/m
    Roller diameter 370 mm
    Rotating speed 0.5-3 rpm (frequency control)
    Transporting speed 0.5-8 m/min (frequency control)









2









Shot blasting system



Blasting chamber

Material of protective area: SPMn13
      Material of the chamber: Q235
    Auxiliary chamber With rubber curtains For sealing the abrasive flying out of the chamber






Blasting turbines

Quantity: 4 units
      Blade structure: Straight line
      Blasting capacity: 4*250 kg/min
      Power: 4*15 kw
      Speed: 76 m/s











3











Abrasive reclaim system

Screw conveyor

Delivery capacity: 60 T/H

Screw diameter: 300 mm

Power: 2*4 kw

Qty: 2 sets





Bucket elevator

Lifting capacity: 60 T/H

Lifting speed: 1.21 m/s

Power: 5.5 kw

Qty: 1 set







Separator

Quantity of separation: 60 T/H

Air speed: 4-5 m/s

Waste content: ≤1% (Full curtain and flow curtain type multistage winnowing)

Power: 4 kw

Qty: 1 set













4













Dust removal system

Filtering material Polyester coated fitter cartridge
    Fan power 18.5 kw
    Total pressure 1820 pa
    Ventilation volume 18000 m3/h
    Cartridge quantity 24 pcs
    Filtering area 360 m2
    Dust falling way Automatic back pulse
    Filtering level Fireproofing, Antistatic
    Filtering accuracy 1 μm
    Back Pulse Quantity 6 pcs
    Dust emission level ≤80 mg/m3
    Dust loading after cleaning 10 mg/m3
5 Electric control system PLC, One-button operation system, cables, low-voltage electric, fault automatic detection alarm function, etc
6 Noise ≤90 dB
7 Total electric power About 102 kw
8 Production time 40 workdays

Steel pipe and tube cleaing rust remove shot blasting machine cleaning effect
