|Type:||Platform Punch Machine||Feeding Accuracy:||±0.15mm|
|Rated Power:||2kw||Name:||CNC Platform Pressing Sheet Metal Hole Punching Machine High Feeding Accuracy|
Punzonadora CNC Punching Machine,
Steel Plate CNC Punching Machine,
Steel Plate turret punch press machine

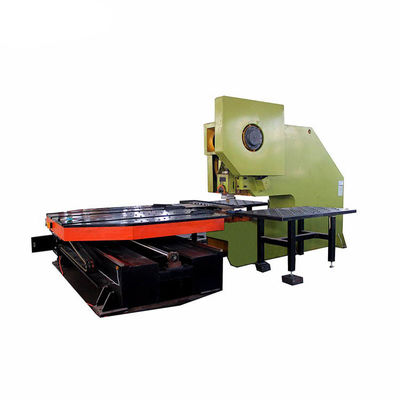

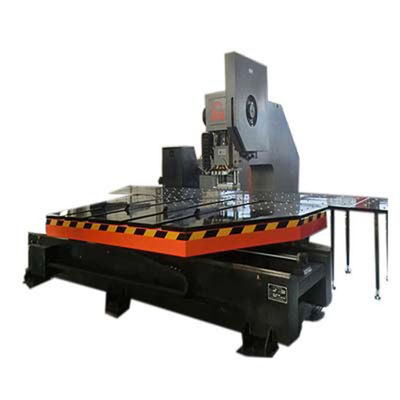

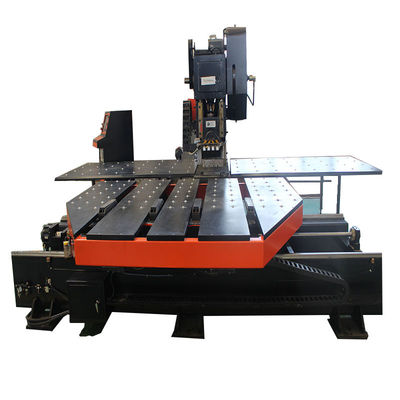

CNC Hole Perforating Machine/Eyelet Machine/Punching Machine With Platform
1. Adopts special system and match up digital AC servo motor to make it fast and reliable; operation is easy, no need manual programming and processing, with the second positioning function, can achieve without dead zone processing.
2. Fuselage is C type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation.
3. The built-in flywheel, crankshaft put in longitudinal, sliding type strike head equipped with imported cluth, the stamping frequency higher, appearance more beautiful.
4. With the second positioning function, can achieve without dead zone processing.
5. Use standards casting integrated thick turret mold disc and standards thick turret internationally used mold.
6. The transmission system use Servo motor, linear guide rail, ball screw, coupling and pneumatic components and electrical parts were imported brand, with good quality and high precision.
7. Main pneumatic components, electric components and transmission components adopt international well-known brand product, which makes the punch work perfectly.
8. Adopts standard float type pneumatic clamp, can float together with sheet and expand processing range, effectively eliminate stamping spare capacity, improve processing precision.
|01||AMD-H thick plate CNC punching machine AMD-H|
|02||AMD-PQ platform CNC punching machine|
|Max. Length *Width||1000*1000mm /1250*1000/2500*1250/4000*1250|
|Max. Process Thickness||6mm|
|Linear Feeding Speed||20m/min|
|Machine Size (length*width*height)||3200*1700*900|
|Environmental Conditions of the Machine|
|Power||380V ± 10%, 50HZ|
|Temperature||5 - 40°C (for machine operation)|
|Relative Humidity||20 – 80%RH|
|Note||1. Keep this machine away from a strong shock source
and electromagnetic source.
2. Free from harmful and corrosive gas and dust.
1. The activity of designing strive for the maximum cost performance.
2. According to the requirement of users,
design & develop personalization product & service.
3. According to the requirement of users, develop the best solution,
minimize the cost of users.
4. 24-hours efficient & confederate after sale commitments in the country.

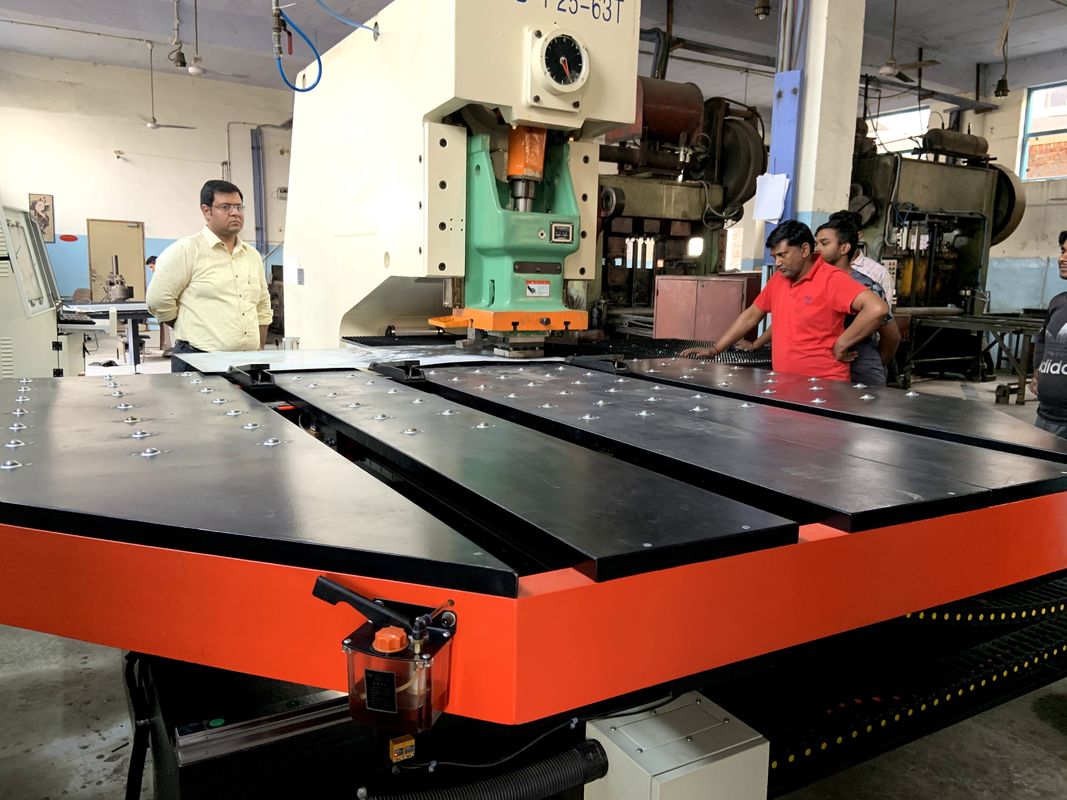

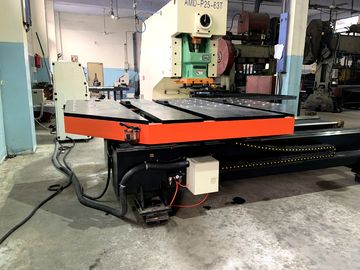

1. Installation and commissioning issue:
We will send 1-2 technicians to assist with machine installation and commissioning,
customer pays for their tickets, hotel and diet, etc Customer need arrange
3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time:
12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents:
including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.
