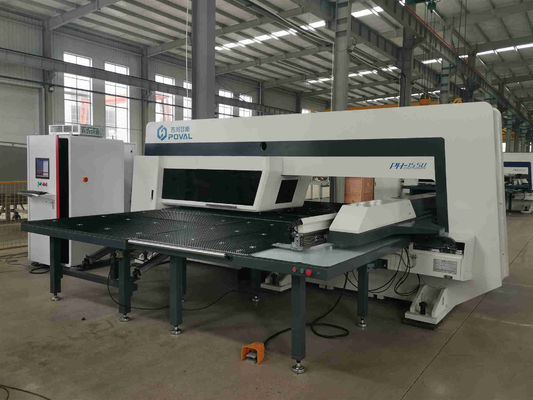

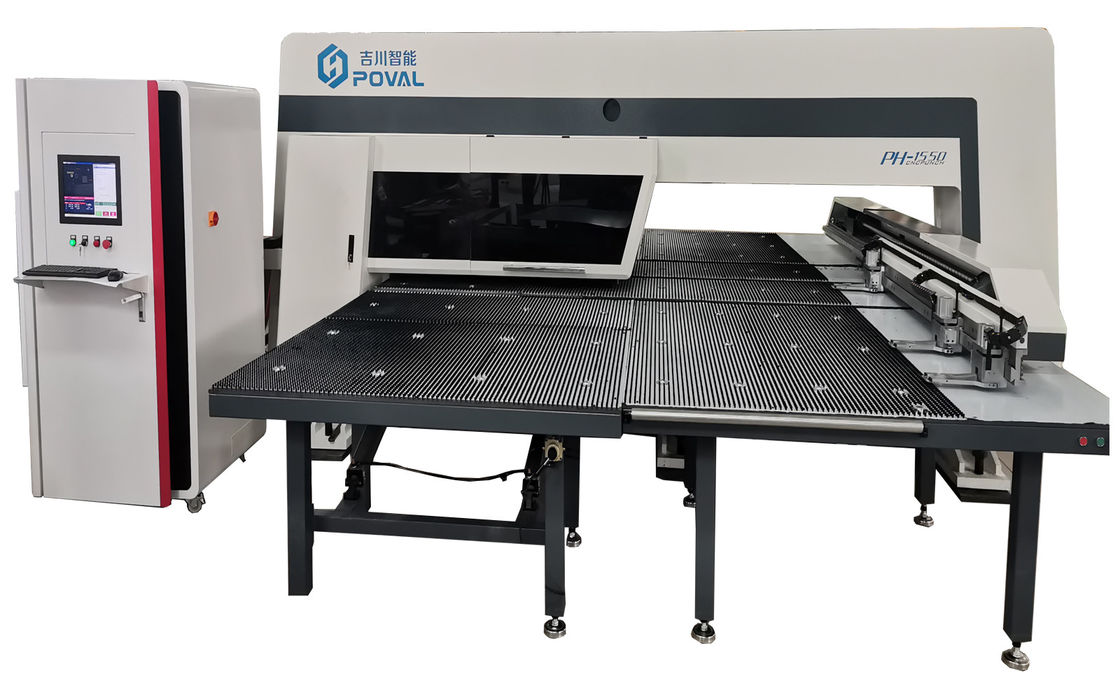

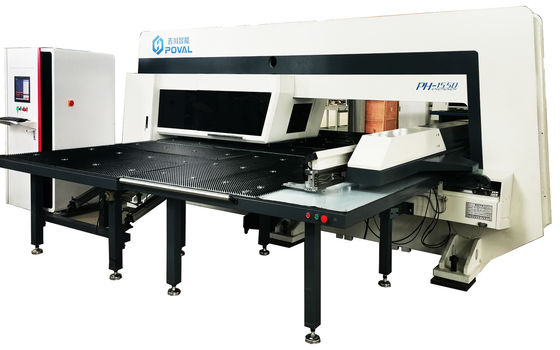

Sheet Metal Hole CNC Turret Punch Press Punching Machine With Loading System

Sheet Metal Hole CNC Turret Punch Press Punching Machine With Loading System
Sheet Metal Hole CNC Turret Punch Press Punching Machine With Loading System

Large Image :  Sheet Metal Hole CNC Turret Punch Press Punching Machine With Loading System

Product Details:

Place of Origin: China
Brand Name: Qingdao AMD
Certification: CE
Model Number: PH-1550

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Stretch film
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Detailed Product Description
Control Axis: 3-4 Power Source: Servo
Punching Frequency: 600hpm Warranty: One Year
Condition: New Power Rating: 20kw
Type: Servo Type Punch Machine CNC Or Not: CNC
Number Of Stations In Turret: 24/32
High Light:

Loading System CNC Turret Punch Press

,

Metal Hole CNC Turret Punch Press

,

Servo Cnc Turret Punching Machine

CNC Turret Punch Press Punching Machine For Sheet Metal Hole With Loading System

ODM PH-1550 Sheet Metal/Aluminum Plate/Stainless Steel CNC Turret Punching Machine For Blinds



CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency



The new generation of cnc turret punch is a low energy, high efficiency turret punch with low environmental and maintenance costs. we can be configured in 22 or 33 ton options. The cnc punching machine was designed with a thick turret to ensure longevity of the machine and its tools and to minimize tool deflection. performs full punches, hovering, marking and forming operations.



SERVO DRIVE SYSTEM
The punch servo utilizes a direct drive gearbox that supplies power and speed. This servo allows the user to steplessly adjust the punch stroke and accommodate any pressure curve requirements.
The AC punch servo motor can be programmed for various applications.
1. High speed applications.
2. Low noise applications.
3. Forming applications.



AUTOMATIC CLAMP POSITIONING
Automatic Clamp Positioning reduces set up time and errors, and provides machine run time flexibility and productivity.


 AMD-SE3510 CNC Turret Punching Machine Product Paramenters:

Specification
Unit
Specification model
Punch Force
KN
200
300


Max.Processing Size

mm
1250*1250
1250*1250
1250*2500
1250*2500
1250*5000
1250*5000
Max.Sheet Thickness
mm
4
6
Punching Frequency
hpm
1600
1600
Max.Sheet Traversing Speed
m/min
80
80
Turret Speed
rpm
40
40
Hole Accuracy
mm
±0.1
±0.1
Max Punch Diameter
mm
φ88.9
φ88.9
Number of stations in turret
No.
24/32
24/32
Air Pressure
mpa
0.8
0.8
Controlled Axis
No.
4(X,Y,C,A)
4(X,Y,C,A)
Prower Rating
KW
30
35
Outline Dimension
mm
4490*53300*2110
4490*5300*2110
Machine Weight
T
13
14



Sheet Metal Hole CNC Turret Punch Press Punching Machine With Loading System 0

control system

Sheet Metal Hole CNC Turret Punch Press Punching Machine With Loading System 1



Servo motor

Sheet Metal Hole CNC Turret Punch Press Punching Machine With Loading System 2



punch system

Sheet Metal Hole CNC Turret Punch Press Punching Machine With Loading System 3

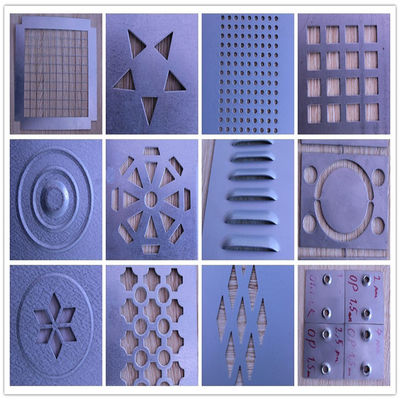

AMD-SE3510 CNC Turret Punching Machine Product application:

Sheet Metal Hole CNC Turret Punch Press Punching Machine With Loading System 4

Sheet Metal Hole CNC Turret Punch Press Punching Machine With Loading System 5

Sheet Metal Hole CNC Turret Punch Press Punching Machine With Loading System 6
