Product Details:
Payment & Shipping Terms:
|
| Machine: | Overhead Chain Shot Blasting Machine | Warranty: | One Year |
|---|---|---|---|
| Hook Amount: | Customized | Wear Parts Material: | Cr20S High Chrome, ZGMn13, Etc |
| Model Number: | Q38,Q48 | Certification: | ISO CE |
| Power(W):: | Power(W): Selected | ||
| High Light: | spinner hanger shot blasting machines,grit blasting equipment |
||

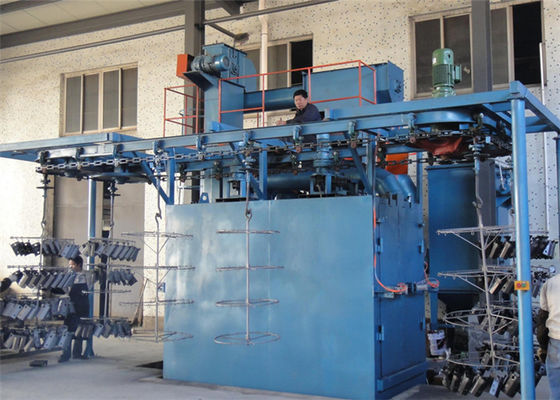

1) Q38 series Hanging Chain Type Shot Blasting Machine
The equipment is mainly applied in the processing of medium and small size workpieces in large scale. It has the advantage of high efficiency, compact structure and no pit. Our company has its own factories, and the factories have abundent manufacturing experince.
2)Q48 series hanging chain type shot blasting machine
| category | type | max.weight of single piece (kg) | piece size(mm) | capacity of shot blasting (kg/min) | productivity | speed of pendant chain(m/min) | lifting distance of pendant chanin(mm) | total ventilation capacity(m3) |
power(excluding dedusting)(kw) |
outline dimensions (mm) |
| stepping hanging chain cleaning machine | Q483 | 300 | ø1000*1400 | 2*250 | 30-50 | 2.44 | 2560 | 6000 | 38.75 | 8450*5350*5003 |
| Q485 | 500 | ø1200*1700 | 3*250 | 30-50 | 7.34 | 2560 | 10000 | 58.43 | 12235*5410*9411 | |
| Q4810 | 800 | ø700*2400 | 6*360 | 30-50 | 2.44 | 2560 | 25000 | 85 | 4500*5350*5003 |
