Automatic Concrete Floor Shot Blasting Equipment For Airport Runway Surface

China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
I'm Online Chat Now

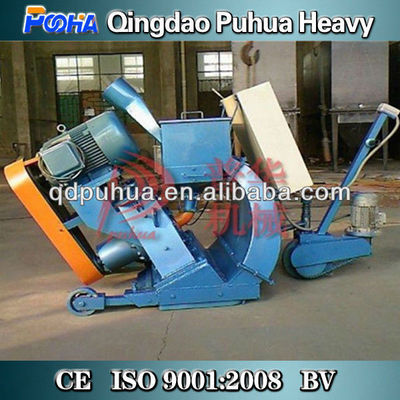

Automatic Concrete Floor Shot Blasting Equipment For Airport Runway Surface

Automatic Concrete Floor Shot Blasting Equipment For Airport Runway Surface
Automatic Concrete Floor Shot Blasting Equipment For Airport Runway Surface

Large Image :  Automatic Concrete Floor Shot Blasting Equipment For Airport Runway Surface

Product Details:

Place of Origin: China
Brand Name: Puhua
Certification: CE
Model Number: PHLM550

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Detailed Product Description
Machine: Mobile Shot Blasting Machine Use: Shot Blasting
Warranty: One Year Load: LCL/FCL
Power(W): Customizd Model Number: Shot Blasting Machine
Certification: CE ISO Type: Shot Blasting
High Light:

concrete floor shot blasting equipment

,

floor sand blasting machine

Mobile shot blasting machine/The airport runway surface paint airless shot blasting machine/floor shot blasting machines



Technique parameter



Type BRTK-270 BRTK-350 BRTK-550
Working width(mm) 270 350 550
Blasting capacity(m2/h) >180 >280 >400
Wheel power(kw) 11 15 2*11
Machine weight(kg) 250 360 560
Outside measurement(L*W*H) 1625*450*1100 1800*550*1300 1900*750*1300
Appropriate dust collector To include To include To include





Working principle of shot blasting machine





Blasting is finished by mechanical methods (steel shot or grit) projectile at a high speed and a certain angle

to the work surface, let out the impact surface and the inside of the machine by supporting the air flow of

the vacuum cleaner cleaning action, impurities out and clean up can be separately recycled, can be used

again and blast technology. The machine is equipped with dust, dust-free, pollution-free construction,

improve efficiency, and protect the environment.

Machine operation by control and select blast of particle size, shape, and walking speed of adjustment and

control equipment, flow control pill projectile, projectiles from different intensities to varying effects of

surface treatment.





Applied range of shot blasting machine

1. airport runway plastic remove

2. steel structure surface treatment and rust remove

3. bridge nursing

4. floor engineering base surface treatment

5. the highway project conservation

6. municipal road works in conservation

7. the hull surface maintenance rust removing

8. zebra stripe cleaning

9. storage tanks conservation remove rust and paint

10. conservation of other surface treatments
