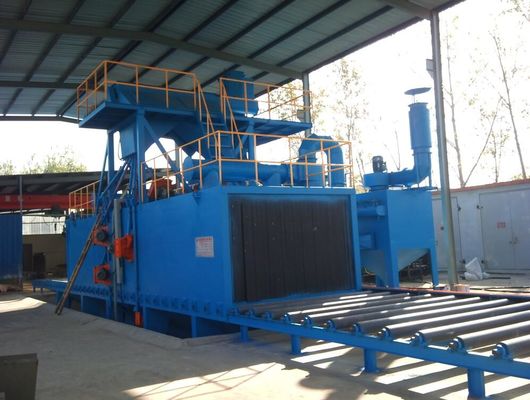

Sheet Metal / Steel Plate Shot Blasting Machine Improve Anti Rust Capacity

Sheet Metal / Steel Plate Shot Blasting Machine Improve Anti Rust Capacity
Sheet Metal / Steel Plate Shot Blasting Machine Improve Anti Rust Capacity Sheet Metal / Steel Plate Shot Blasting Machine Improve Anti Rust Capacity

Large Image :  Sheet Metal / Steel Plate Shot Blasting Machine Improve Anti Rust Capacity

Product Details:

Place of Origin: China
Brand Name: Qingdao Puhua
Certification: CE
Model Number: Q69

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude
Delivery Time: 20-40 workdays
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Detailed Product Description
Machine: Roller Conveyor Shot Blasting Machine The Advantages: Compact Structure And High Productivity
Experience: Over 20 Years Design And Produce Experience Spare Parts: Cr20S High Chrome, ZGMn13, Etc
Type: Roller Conveyor Exporting Countries: More Than 70 Countries
High Light:

blast cleaning equipment

,

automatic shot blasting machine

Q69 Roller Conveyor Shot Blasting Machine For Steel Plate and Steel Structures



1. Steel Structure H Beam Shot Blasting Machines Basic Specification:

Parameter Q6915 Q6920 Q6925 Q6930 Q6940
The effective cleaning width (mm) 1500 2000 2500 3000 4000
Dimension of inlet opening (mm) 1700*400 2200*400 2700*800 3200*800 4200*400
The length of cleaning workpiece (mm) 1200-12000 1200-12000 3000-12000 2400-12000 4500-18000
The speed of conveyor (m/min) 0.5-4 0.5-4 0.5-4 0.5-4 0.5-4
The thickness of cleaning steel sheet (mm) 1.5-60 3-60 3-60 3-110 4.5-100
Shot ball flow rate (kg/min) 4*250 6*250 6*250 6*360 8*360
The shot ball first loading (kg) 4000 4500 4500 8000 11000
Roll brush adjusting height (mm) 350 450 600 850 900
Air capacity (m3/h) 19000 19550 27758 28050 38000
Total power (kw) 113.5 156.6 204.8 224.55 293.6



Structural characteristice

This machine is a special reciprocating steel sand blasting machine, which consists of Blasting chamber, Blasting wheel assembly, Roller conveoyr, Abrasive recycling system (Screw conveyor, Elevator, Separator), Dust removal system, Electric control system, etc.



Strong point of this series shot blasting machines



1. Improve the corrosion resisting ability of machinery products and metal materials.

2. Improve bonding strength of steel surfaces and coatings.

3. Increase the anti-fatigue capability of metal products and extend its life.

4. Optimize the craftwork state of steel surface.

5. Greatly enhance the efficiency of cleaning.

6. Reduce the labor intensity of cleaning works.

7. Reduce the environment pollution.



Steel Structure Shot Blasting Machines Features:

1. Pass through shot blasting machine has three kinds of pass through type: Roller conveying pass through, trolley pass through, hanger pass through.

2. They are widely used in the industry of steel plate, steel structure, engineering machinery, bridge building and so on. By shot blasting, it can remove rust, oxide layers, welding slag and other pollutant and eliminate surface stress force.

3. After shot blasting, it can improve paint film adhesion with steel, improve anti-rust capacity, improve the quality and prolong the service life of steel structure.

4. The steel shots blasted by blasting turbines will be collected, purifying by shots circle system and continue to be used again for blasting turbines.

5. The working process flow of shots circle system: steel shots blasted by blasting turbines will be collected by portrait screw conveyor and delivered to bucket elevator then the bucket elevator will lift to air wash type separator.

6. After separating, the dust and broken steel shots will be removed away from steel shots and good steel shots will enter storage bin.



Trade Information:

MOQ: 1set.

Settlement Currency: USD, RMB, EUR.

Trade mode: FOB (FCA), CIP, CFR, CIF, DDU, DDP, Turnkey.

Payment term: 30% deposit by T/T, the balance paid before delivery or L/C at sight.

Delivery time: Within 15-40 days according to different type machine.



After-sale service:
1. Installation and commissioning issue: We will send one technician to guidance with machine installation and commissioning, customer shall pay for his return tickets, hotel and diet. Customer shall arrange 3-4 skilled workers and prepare various insallation machinery and tools.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience : Many countries and area, such as The USA, Germany, France, Russia, United Kingdom, Australia, Malaysia, UAE, Egypt, Mexico, Brasil, etc.
5. Our shot blasting spare parts are high quality with Cr20S High Chrome, ZGMn13, etc
.
