cnc hydraulic turret punch press,
cnc hydraulic plate punching machine

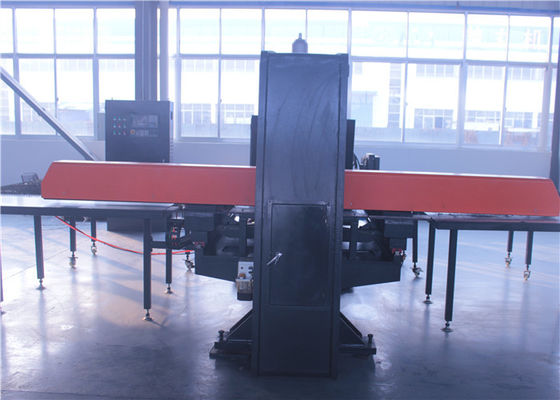

Heavy Duty Special CNC Punching Machine For 6-30 mm Thick Plate Hole Punching
1. Welding lathe bed overall tempering treatment, eliminate stress; Flank movement of feeding platform reduce the friction between the plate and platform, increase the level and support gender of machine.
2. Adjustable clamp, clamp clamping force is strong, also can protect the plate, avoid strain scratch; Universal ball workbench, The supporting effect is good.
3. Motor cable with shielding, which can effectively prevent interference, and has a substantial set of protection, prevent oil, waterproof, prevent pollution; Main electrical components placed in the electrical box, prevent wire outside leakage, both safe and convenient in maintenance and protection.
4. Lathe bed guide spacing 1600mm, this width for domestic leading with patent levels, the ultra width guide spacing and guarantee the machine design the operation stability, and to ensure the machining accuracy of big plate thickness plate, the vibration aging, eliminate stress, deformation, guarantee the long-term stability of the machine.
|3||Power Rating||15-50 KW|
|4||Max. Processing Size||
6000*1500mm (Second position)
|5||Max. sheet Thickness||≤20 (carbon steel)|
|6||Max. Punch Diameter||Φ80mm|
|7||Max. Traversing Speed||30m/min|
|11||X/Y axis stroke||
|14||Number of stations||2-12 stations|
|16||Controlled Axis||2 axis|
|18||Quantity of clamps||3|
|22||Heat treatment of frame||Annealing|
|23||RS232C communication interface||Yes|
|25||Power specification||380V,50HZ, 3Phase or customized|
|26||Overall Dimensions||7000*5500*2710 mm or customized|
1. Installation and commissioning issue: We will send 1-3 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet, etc. Customer need arrange 3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full english documents: including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience : Many countries, such as UAE, Egypt, Venezuela, India, Argentina, Paraguay, etc.
