Cycle Chain Type Steel Shot Blasting Machine , Automatic Sandblasting Machine

China Cycle Chain Type Steel Shot Blasting Machine , Automatic Sandblasting Machine supplier

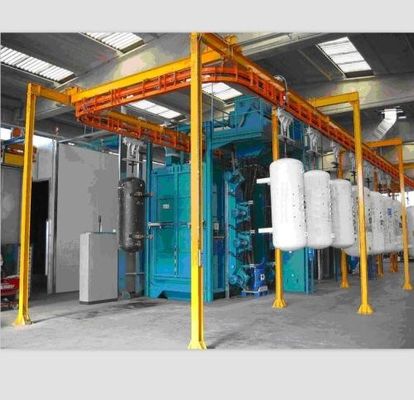

Large Image :  Cycle Chain Type Steel Shot Blasting Machine , Automatic Sandblasting Machine

Product Details:

Place of Origin: China
Brand Name: Puhua
Certification: CE
Model Number: Q38

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Stretch film
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Machine: Overhead Chain Shot Blasting Machine Warranty: One Year
Hook Amount: Customized Wear Parts Material: Cr20S High Chrome, ZGMn13, Etc
Certification: ISO CE Condition: New
Machine Type: Abrator Cleaning Type: Auto

Q38 High Efficiency Overhead Chain Continuous Shot Blasting Machine

Cycle Chain Type Steel Shot Blasting Machine , Automatic Sandblasting Machine

Product Description

Anchor chain shot blasting machine is mainly used to clean up the surface of anchor chain oxide and surface appendages, and by making the surface of plastic deformation and effectively improve the chain of anti-fatigue strength and corrosion resistance to fracture, Of the film adhesion, aultimately achieve the purpose of improving the surface and intrinsic quality . Anchor chain shot blasting machine is designed and manufactured according to the needs of users, is Qingdao KNNJOO Machine's small and medium-sized shot blasting equipment representative, can rust remove φ22-φ150-type one-time through the clean-up chain.


Work process:
To be cleaned of the anchor chain through the hanging at the entrance, the import wheel set by the sealed room to the clean room, the cantilever centrifugal shot blasting abrasive will be high-speed surface to be cleaned, the impact of the workpiece, scraping to clear The surface of the workpiece oxide and other accessories, shot blasting clean-up, the anchor chain was the body guide wheel sent out continuously, after the next sealed room, the export guide wheel was sent out of the main wheel discharge.


The whole process is as follows:

Crane hoisting an import wheel group on the seal chamber a shot blasting a room body guide wheel about seal chamber an export guide wheel an export driving wheel.



Specification:



Model Hanger capacity(kg) Workpiece size to be cleaned(mm) Productivity(hooks/h) Work stype
Q382 200 Φ500*1200 30~60 Continuous
Q383C 250 Φ700*1200 30~60 Continuous
Q384C 400 Φ700*1500 40~70 Continuous
Q483 300 Φ1060*1200 10~25 Step-by-step
Q485 500 Φ1200*1500 10~25 Step-by-step
Q488 800 Φ1400*1800 10~25 step-by-step
Q583 300 Φ1000*1500 30~60 Accumulation conveyors
Q585 500 Φ1200*1500 30~60 Accumulation converyors
Q588 800 Φ1500*1500 30~60 Accumulation converyor
