CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency

China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
I'm Online Chat Now

CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency

CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency
CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency

Large Image :  CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency

Product Details:

Place of Origin: China
Brand Name: Qingdao AMD
Certification: CE
Model Number: AMD-357

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Stretch film
Delivery Time: 35 workdays
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Detailed Product Description
Condition: New CNC Or Not: CNC
Power Source: Servo Warranty: One Year
Punching Frequency: 600hpm Control Axis: 3-4
Power Rating: 20kw Type: Servo Type Punch Machine
High Light:

turret punch press machine

,

amada turret punching machine

                   CNC Servo Power Press Punching Machinery Equipment

Product Description

·Equipped Fanuc 5 axis CNC system, Fanuc CNC punch servo module, can realize 5 axis control at the same time. ·Equipped with USB, R232 communication interface which can realize the front desk, backstage programming. ·Fuselage is O type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation. · Equipped high strength nodular cast iron to cast into integral thick turret mold plate, thickness is 80mm, through heat treatment to get rid of internal stress, rigid good, precision stability, impact resistant ability good; greatly improving mold service life. · Equipped with high precision servo initiative transmission system, speed is faster and stroke is adjustable. · With the second positioning function, can achieve processing without dead zone. · The transmission system use original Taiwan brand with high precision, big guide the ball screw, linear guide rail are high precision and good performance. ·Main pneumatic components, electric components, hydraulic components and transmission components adopt international well-known brand product, which makes the punch work perfectly. ·Equipped with concentrated lubricating device, reduce friction and improve service life. ·Equipped with 2 sets of
auto-index station, can easily punch holes with different degrees.



Product Paramenters

Specification
Unit
Specification model
Punch Force
KN
200
300


Max.Processing Size

mm
1250*1250
1250*1250
1250*2500
1250*2500
1250*5000
1250*5000
Max.Sheet Thickness
mm
4
6
Punching Frequency
hpm
1600
1600
Max.Sheet Traversing Speed
m/min
80
80
Turret Speed
rpm
40
40
Hole Accuracy
mm
±0.1
±0.1
Max Punch Diameter
mm
φ88.9
φ88.9
Number of stations in turret
No.
24/32
24/32
Air Pressure
mpa
0.8
0.8
Controlled Axis
No.
4(X,Y,C,A)
4(X,Y,C,A)
Prower Rating
KW
30
35
Outline Dimension
mm
4490*53300*2110
4490*5300*2110
Machine Weight
T
13
14

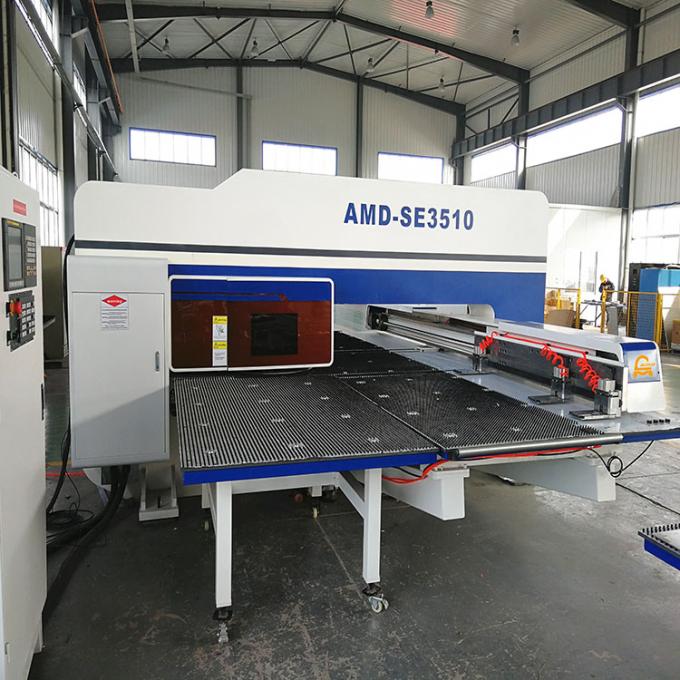

Workshop situation:

CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency 0

CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency 1

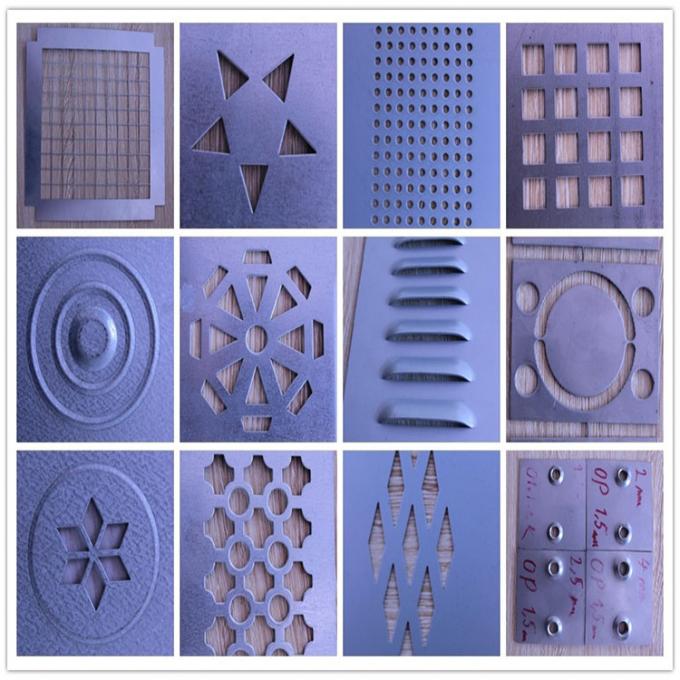

Punch Sample

CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency 2

Company Introduction

CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency 3
