|The Advantages:||Compact Structure And High Productivity||Material::||Metal / Coil|
|Cleaning Process::||Steel Shot||Function::||Metal Surface Cleaning|
|Weight (KG)::||7000 KG||Machine:||Roller Conveyor Shot Blasting Machine|
|Exporting Countries:||More Than 70 Countries||Spare Parts:||Cr20S High Chrome, ZGMn13, Etc|
|Name:||High Speed Steel Profiles Industrial Shot Blasting Machine For Sheet Metal||Experience:||Over 20 Years Design And Produce Experience|
|Type:||Roller Conveyor||Key Words:||Roller Conveyor Shot Blasting Machine|
5T Workpiece Shot Blasting Machine,
1.5M/Min Shot Blasting Machine,
Sa2.5 Shot Blasting Machine

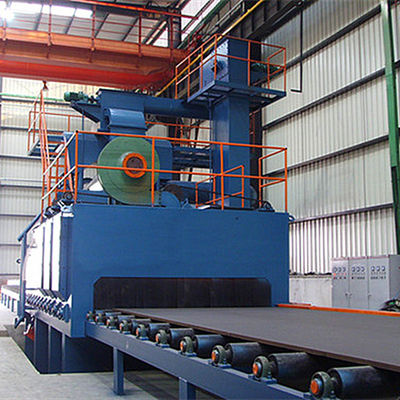

Q69 Roller Conveyor Shot Blasting Machine For Steel Plate and Steel Structures
Q6922 shot blasting machine is a specially designed machine used in the surface cleaning for various jobs. It can realize the shot blasting automatically.
2 Components and function
Q6922 shot blasting machine consists of roller conveyor system, blasting system, abrasive circulation system (separator, bucket elevator, screw conveyor), dust collection system, and electric control system. The surface finish level is Sa2.5.
2.1 Conveyor system
It consists of loading and unloading rollers, chamber rollers, connecting rollers.
● Rollers in the blasting cabinet are protected by special alloy jacket with lifetime over 4,000 hours.
● Conveyor system is driven by motors with inverter. Rollers can be controlled manually and automatically.
● Step-less speed is available. Roller conveyor could move in step with the whole machine or move faster.
2.2 Shot blasting system
Shot blasting system consists of auxiliary chambers, blasting chamber and shot blasting machine assembly. The abrasive media like the steel shots, grits are applied on the metal surface driven by the centrifugal force from the blades. Workpieces will be de-rusted, cleaned and roughened in blasting system to reach customer’s finishing level.
2.2.1 Auxiliary chamber
There are 5-7 layers of wear-resisting rubber curtain in it. The suspension type makes the exchange and access easier. The seal ability is excellent. No dust would be leaked out because of the negative pressure formed by the dust collector fan.
2.2.2 Blasting chamber
In the blasting chamber, the wall is protected by SPMn13 material liner and 65Mn protective liner, which has high wear resistant performance. Chamber inside protection plate all adopt the high strength nut fixed and pressure on the inner of blasting chamber, easy tear open outfit replacement. Prolong service life, reduce the cost and reduce maintenance frequency. The steel abrasive fall down freely and collected by screw conveyor.
2.2.3 Shot blasting machine assembly
This machine has 10 sets of high speed & performance blast wheels. Material of blades, control cage and distributor is Cr20S high-chromium, which has long service life. The lifetime of blade is over 500 hours, and lifetime of impeller and control cage is over 2000 hours. All wear parts are the market most universal national standard parts.
2.3 Abrasive circulation system
The system includes following parts: hopper, abrasive control valves, screw conveyors, bucket elevator, separator.
2.3.1 Screw conveyor
Screw conveyor consists of cycloid needle wheel decelerator, screw axis, conveyor shell, bearing, etc. It is a
standard conveying device and an important part of abrasive circulating system. The screw blade is made of 16 Mn.
This unit is responsible for conveying the abrasive to the elevator. Screw conveyor located at the bottom of shot blasting chamber, the spiral blade welding in the drive shaft. Conveyor motor drives screw conveyor to send abrasive to discharge outlet, then the mixed abrasive will be conveyed to elevator bottom.
On both ends of the screw conveyor adopt triple seal protection. the abrasive and dust will drop to the clearance between end plate and bearing once leak out, will not enter the bearing. Screw conveyor shaft with sensors detecting unit can detect the working state.
|1||Max. Workpiece size (L*W*H)||10000*2000*1000 mm|
|2||Chamber open size (W*H)||2200*1200 mm|
|3||Max. Workpiece weight||5T|
|4||Finish level||Can achieve Sa2 .5 (GB8923-88)|
|5||Processing speed||0.5-1.5 m/min (Frequency conversion variable speed)|
|6||Surface roughness||30~75 μ (Depend on abrasive size)|
|Steel cut wire, casting alloy shot: Φ0.5~1.5, abrasive supply valve max. flow: 500 kg/min. Abrasive loss: 0.15-0.25 kg/h/pcs. First loading: ~4000 kg.|
|8||Electric power supply||380V, 3P, 50HZ or customized|
Roller conveyor system
|Motor power||3*2 KW|
|Roller diameter||108 mm|
|Loading capacity||1000 kg/m|
|Roller separation distance||800 mm|
|Transporting speed||0.5-6 m/min (frequency control)|
Shot blasting system
|Blasting chamber||Material of protective area: SPMn13|
|Material of the chamber: Q235|
|Auxiliary chamber||With rubber curtains for sealing the abrasive flying out of the chamber|
|Blasting wheel||Quantity: 10 units|
|Blade structure: Straight line|
|Blasting capacity: 10*180 kg/min|
|Power: 10*11 kw|
|Speed: 76 m/s|
Abrasive reclaim system
Conveying capacity: 120 T/H
Screw diameter: 360 mm
Power: 2*7.5 KW
Quantity: 2 sets
Lifting capacity: 120 T/H
Lifting speed: 1.21 m/s
Power: 11 kw
Quantity: 1 set
Quantity of separation: 120 T/H
Air speed: 4-5 m/s
Power: 7.5 kw
Waste content: ≤1% (Full curtain and flow curtain type multistage winnowing)
Dust removal system
|Filtering material||Polyester coated fitter cartridge|
|Fan power||2*15 kw|
|Total pressure||2000 pa|
|Ventilation volume||26000 m3/h|
|Cartridge quantity||24 pcs-(φ360x1000 mm)|
|Filtering area||360 m2|
|Dust falling way||Automatic back pulse|
|Filtering level||Fireproofing, Prevent spontaneous combustion|
|Filtering accuracy||1 μm|
|Dust emission level||≤80 mg/m3|
|5||Electric control system||PLC, Low voltage electrical components, button|
|6||Noise||≤85 dB (Measure outside workshop)|
|7||Others||Air pressure: 0.5-0.7 Mpa; First loading of steel shot: 4000 kgs (User prepare)|
|8||Total electric power||About 190.5 kw|
