Workpipece: | Steel Plate,small Steel Structure | Shot Blast Machine: | Pass-through |
---|---|---|---|
Name: | Shot Blasting Machine | Blasting Wheel: | 6 Pieces |
Type: | Abrasive Blasting Equipment | Color: | Customizable |
Key Words: | Mesh Belt Shot Blasting Machine | ||
High Light: | Wire Mesh Belt Shot Blasting Machine,PLC Wire Mesh Shot Blasting Machine,Thin Walled Casting Shot Blasting Machine |

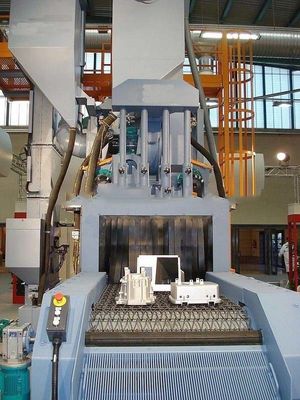

Wire mesh belt type shot blasting machine is mainly used for automobile, aerospace railway and other machine manufacturing industry, especially suitable for the surface of the thin-walled iron castings or aluminium castings and other small parts.It can be used for mechanical parts shot blasting strength.
Conveyor Belt Used Sandblast Equipment Made In China Feature:
1. Suitable for ship,car,automobile,bridge,etc. industry
2. Cleaning fast
3. PLC control system
4. 3D disign and plasma cutting
5. Chamber liner by olling Mn13 steel,at least 3~5 years
No.
|
Item
|
Unit
|
Data
|
1
|
Machine overall dimensions (L*W*H)
|
MM
|
About 7000 x 2870 x 5400
|
2
|
Height from ground to mesh belt
|
MM
|
1400
|
3
|
Feeding entrance size (Width*Height)
|
MM
|
1000*500
|
4
|
Max. loading weight of single workpiece
|
KG
|
65
|
5
|
Cleaning speed
|
m/min
|
1~2.5 (according to different cleaning requirements can be adjusted by stepless frequency conversion
|
6
|
Rust removal standard
|
|
Sa2.5
|
7
|
Dealing with material and intensity range
|
|
Steel,Stainless,Aluminum,etc
|
8
|
Surface roughness
|
μ
|
20~75(depends on the shot size)
|
9
|
Total power
|
KW
|
About 53.1
|
10
|
Compressed air consumption
|
m³/min
|
0.3
|
11
|
Compressed air pressure
|
MPa
|
0.5-0.7
|
12
|
Foundation
|
|
No pit, waterproof
|
13
|
Noise level
|
dB
|
≤95
|
High temperature resistance
fast conveying speed
Wire Mesh Conveyor System
Wire Conveyor Width: 600-1200mm
Wire Conveyor Speed: 0.5-4m/min
Wire Conveyor Load: Max unit 150kg
Wire Mesh Diameter:3.5-6.5mm
Max Temperature: <1000°c
High dust removal effect
low pollution
The dust removal system consists of ducting system and filter cartridge dust collector. The emission standard can be lower 80 g/m3. The fan power is 30 kw, ventilation quantity is 26000 m3/h.
Safe ,Good sealing
Blasting Chamber:
Chamber Shell: 10mm fabrication steel
Chamber Liner: 10mm Mn alloy liner with high resistance.
Auxiliary Blasting Chamber:Four layers rubber curtains to prevent steel shots and grits out of blasting chambers.
Curtains:Rubber curtains to prevent steel shots out.
