Payment & Shipping Terms:
|Control Axis:||3-4||Power Source:||Servo|
|Punching Frequency:||600hpm||Warranty:||One Year|
|Type:||Servo Type Punch Machine||CNC Or Not:||CNC|
|Number Of Stations In Turret:||24/32|
Ms 6mm Servo Punch Press,
Aluminum 6mm Servo Punch Press,
6mm Cnc Turret Punching Machine

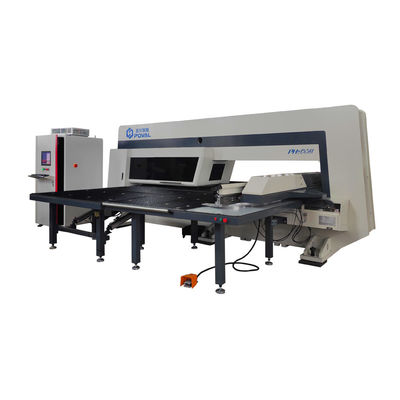

ODM AMD-SE3510 Sheet Metal/Aluminum Plate/Stainless Steel CNC Turret Punching Machine For Blinds
CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency
The new generation of cnc turret punch is a low energy, high efficiency turret punch with low environmental and maintenance costs. we can be configured in 22 or 33 ton options. The cnc punching machine was designed with a thick turret to ensure longevity of the machine and its tools and to minimize tool deflection. performs full punches, hovering, marking and forming operations.
SERVO DRIVE SYSTEM
The punch servo utilizes a direct drive gearbox that supplies power and speed. This servo allows the user to steplessly adjust the punch stroke and accommodate any pressure curve requirements.
The AC punch servo motor can be programmed for various applications.
1. High speed applications.
2. Low noise applications.
3. Forming applications.
AUTOMATIC CLAMP POSITIONING
Automatic Clamp Positioning reduces set up time and errors, and provides machine run time flexibility and productivity.
AMD-SE3510 CNC Turret Punching Machine Product application:
