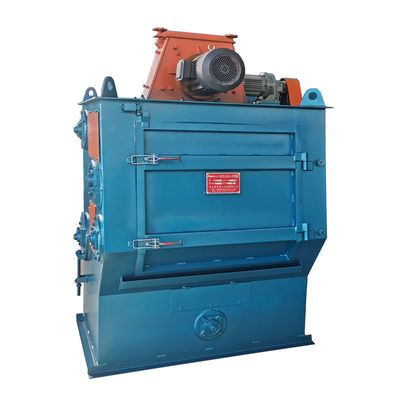

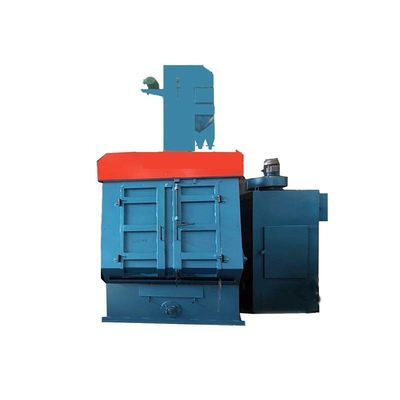

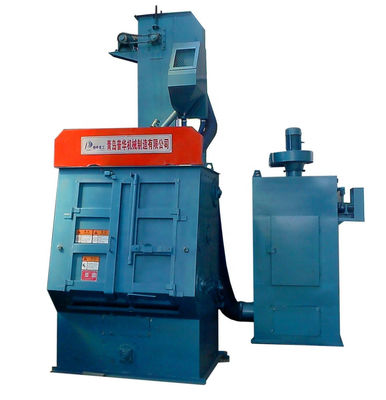

Q32 Tumble Belt Tracked Type Crawler Shot Blaster Abrator Small Shot Blasting Machine
Tumble rubber belt type shot blasting machine is blast cleaning equipment for casting parts, forging parts and small fabricated metal work pieces.
Tumble belt rotates with work pieces on it at the bottom of blasting chamber. Blasting wheels on top blast steel shots and grits on work pieces. Left and right chamber are protected by alloy liners.
Tumble belt can be rubber or metal.
2 Components and function
Q3210 shot blasting machine consists of blasting system, blasting chamber, abrasive circulation system (separator, bucket elevator, screw conveyor), dust collection system and electric control system. The surface finish level is Sa2.5.
2.1 Shot blasting system
Shot blasting system consists of blasting chamber and shot blasting machine assembly. The abrasive media like the steel shots, grits are applied on the metal surface driven by the centrifugal force from the blades. Workpieces will be de-rusted, cleaned and roughened in blasting system to reach customer’s finishing level.
2.2 Blasting chamber
Blasting chamber is welding structure, inside has rubber belt and drive mechanism, at the bottom of the chamber has a screw conveyor, indoor adopts wear-resisting guard protection, blast wheel fixed on the top of the chamber. In the blasting chamber, the end disk is protected by ZGMn13 material, which has high wear resistant performance. Prolong service life, reduce the cost and reduce maintenance frequency.
Q32 Type Tumble Belt Shot Blasting Machine Product Paramters:
Tumblast shot blasting machine specification:
|Maximum weight of single piece||Kg||15||30|
|End plate diameter||mm||650||1000|
|Abrasive flow rate||Kg/min||200||250|
|Dust removal air volume||m3/h||2500||4000|
|1||Belt transmission system||Speed||0.1 m/s; 3.5 rpm|
Shot blasting system
|Material of protective disk: ZGMn13|
|Material of the chamber: Q235|
|Wheel quantity: 1 unit|
|Blade structure: Straight line|
|Blasting capacity: 180 kg/min|
|Power: 11 kw|
|Speed: 76 m/s|
Abrasive reclaim system
Conveying capacity: 15 T/H
Screw diameter: 250 mm
Qty: 1 set
Lifting capacity: 15 T/H
Lifting speed: 1.21 m/s
Power: 1.5 kw
Qty: 1 set
Spiral trommel separator
Quantity of separation: 15 T/H
Air speed: 4-5 m/s
Waste content: ≤1% (Full curtain and flow curtain type multistage winnowing)
Qty: 1 set
Dust removal system
|Filtering material||Polyester coated fitter cartridge|
|Fan power||4 kw|
|Total pressure||1890 pa|
|Ventilation volume||5600 m3/h|
|Filter cartridge quantity||4 pcs|
|Filtering area||60 m2|
|Dust falling way||Automatic back pulse|
|Filtering accuracy||1 μm|
|Back Pulse Quantity||2 pcs|
|Dust emission level||≤90 mg/m3|
|5||Electric control system||One-button operation system, cables, low-voltage electric, automatic fault detection and alarm function, etc|
|7||Total electric power||About 19.5 kw|
|8||Production time||20 days|
Q32 Type Tumble Belt Shot Blasting Machine Product Features:
Q32 Type Tumble Belt Shot Blasting Machine Product application:
1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet, etc Customer need arrange 3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time: 12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents: including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.
