Type: | Mechanical Turret Punching Machine | Condition: | New |
---|---|---|---|
CNC Or Not: | CNC | Warranty: | One Year |
Control Axis: | 3-4 | Power Source: | Mechanical |
Punching Frequency: | 400-600 Hpm | ||
High Light: | Mechanical CNC Punch Press Machine,cnc angle punching machine,cnc punch press machine |
ODM/OEM High Quality Punch Machine Mechanical CNC Punch Press Machine

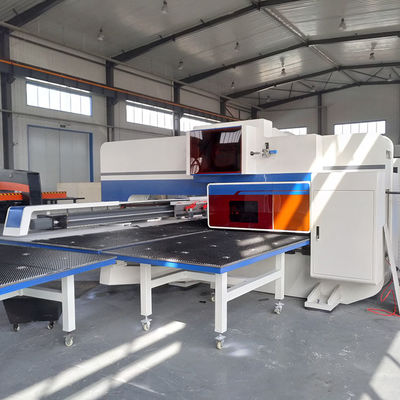

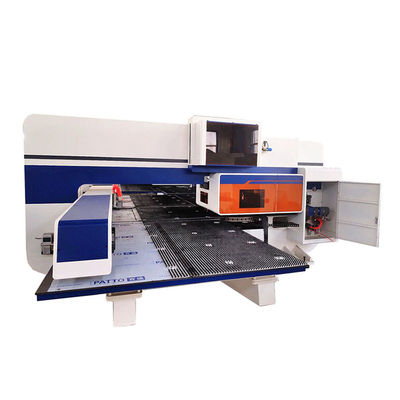

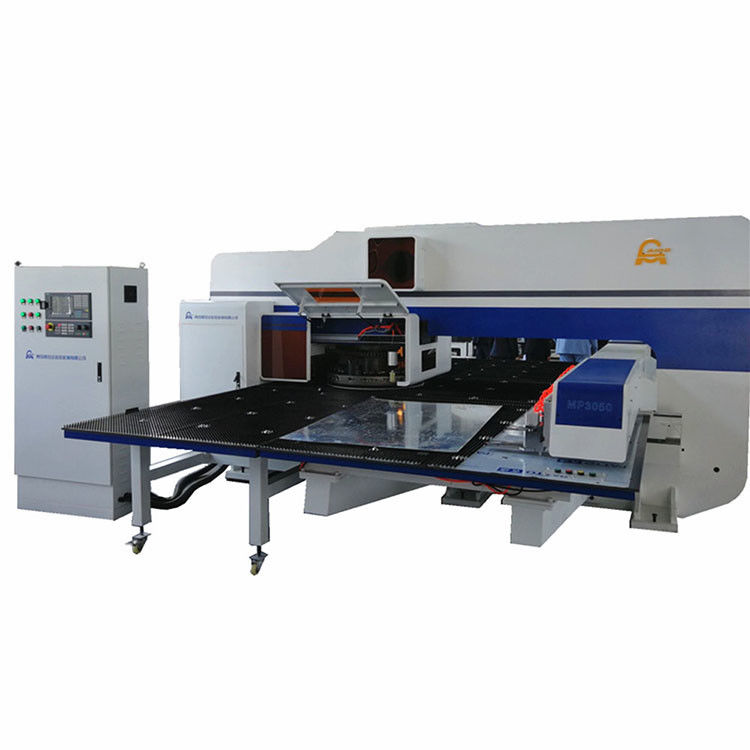

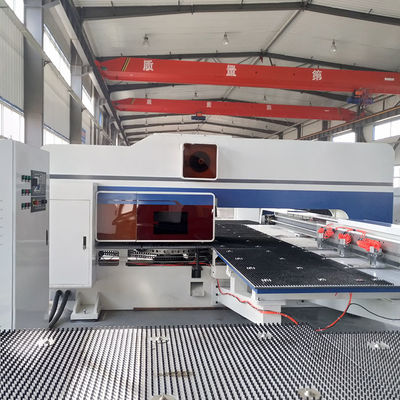

AMD-357 Mechanical Type CNC Turret Punching Machine for Sheet Metal Hole Punching
cnc turret punching machine utilizes the power of servo motor, various functions such as shifting and execution, and the characteristics of good controllability of the rotating speed. It directly drives the punching mechanism, adopts adaptive torque control technology and computer control technology, and utilizes digital technology. And feedback control technology, control the operation of the servo motor, can accurately control the position of the punching head relative to the motor corner, and use the stamping mechanism to achieve a variety of stamping processes. Through the preparation of different procedures, the various stamping motion curves required for the process are realized, different workpiece deformation speeds are obtained, the workpiece quality is ensured, and the service life of the mold is improved. It is an environmentally-friendly and energy-saving press that realizes the mechanical press.
• Linear axis: X Y axis, turret axis: T axis.
• There are alarm displays for many mechanical and electrical faults such as overtravel.
• With self-diagnosis function.
• With soft limit function.
• International general G code programming.
• With mold compensation function.
• With pitch compensation.
• With backlash compensation.
• Has a coordinate offset function.
• With relocation function.
• With automatic, manual and semi-automatic operation modes.
• With clamp protection.
•With parameter programming function.
• With fast positioning and stamping lock function.
Hydraulic press machine main specification:
Specification | Unit | AMD-357 | |
Transmission mode | / | Hydraulic | Mechanical |
Punch force | KN | 300 | |
Power rating | KW | 20 | 11 |
Processing sheet size | mm | 2500*1250 | 2500*1250 |
Processing sheet thickness | mm | ≤6 | ≤4 |
Max. Punch diameter | mm | Ø88.9 | Ø88.9 |
Sheet moving speed | m/min | 40 | 40 |
Punching frequency | hpm | 600 | 300 |
Hole accuracy | mm | ±0.1 | ±0.1 |
Number of stations in turret | No. | 16/24/32 | 16/24/32 |
Turret speed | rpm | 30 | 30 |
Controlled axis | No. | 3/4 | 3/4 |
Rotating location | No. | 0/2 | 0/2 |
Air pressure | Mpa | ≥0.8 | ≥0.8 |
Outline Dimension | mm | 4490*5300*2110 | 4490*5300*2110 |
Machine Weight | T | 11 | 10 |
Trade Information:
MOQ: 1set.
Settlement Currency: USD, RMB, EUR.
Trade mode: FOB (FCA), CIP, CFR, CIF, DDU, DDP, Turnkey.
Payment term: 30% deposit by T/T, the balance paid before delivery or L/C at sight.
Delivery time: Within 15-40 days according to different type hydraulic press machine.
