Type: | Hook Shot Blasting Machine | Workpiece: | Steel Plate,Small Metal Pendant |
---|---|---|---|
Key Words: | Double Type Shot Blasting Machine | Color: | Customizable |
Fuel: | Electric | Certification: | CE ISO |
Advantage: | Our Product Quality Is Reliable, The Service Is Good, The Professionalism Is Strong, The Company Is Large | ||
High Light: | Double Hook Type Shot Blasting Machine,LPG Cylinder Shot Blasting Machine,Q37 Hook Type Shot Blasting Machine |
Bicycle Frame Shot Blasting Machine Rust Remove Cleaning

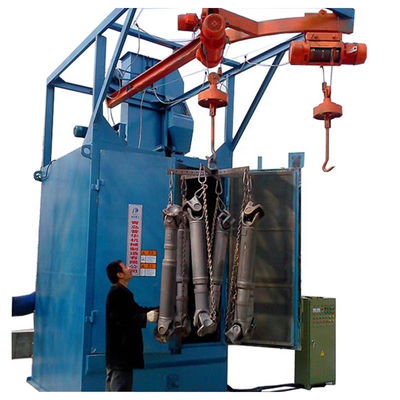

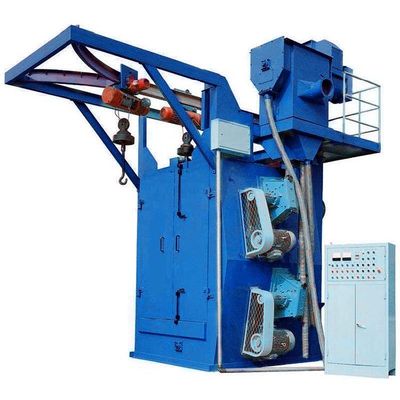

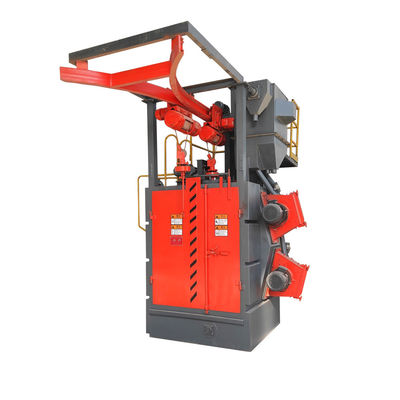

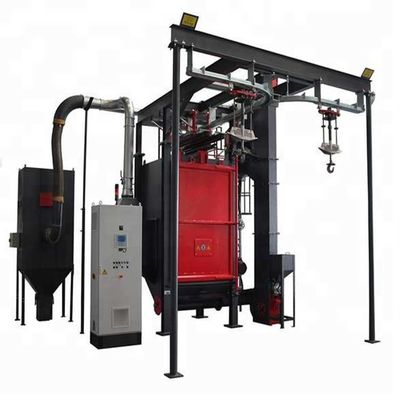

Shotblasting Hanger Type Hook Shot Blasting Machine For Lpg Cylinder
Hook Type machines are the most flexible machine types. They are split into Batch Type Machines where one batch of parts moves in,starts rotating, gets blasted and moves out, and Continuous Type Machines where the machines are equipped with a monorail system that moves the parts continuously through the machine.
Q37 series hook type airless shot blast cleaning machine is mainly used for surface cleaning and strengthening of steel structural parts, castings, aluminum alloy parts and other spare parts. It is widely used in foundry, mechanical and steel industry.
Features
1. Construction free of pit, convenient installation, reduction of investment cost;
2. Compact structure, high efficiency, good cleaning quality, working in safety and running in stable;
3. With double-hook, independent of working each other and non-interacting, improving of production efficiency, the sling takes
advantage of planet basis, that is, rotation and revolution happened at the same, so treated parts will not exist at male and female face;
4. The secondary dust removal (vortex de-dusting, bag filter),with large air suction capacity, de-rusting and filtering to clean,exhaust emission complies with environmental standard.
Application of hook shot blasting machine:
Q37 series is used for surface cleaning,dust removing and surface intensification of each kind of middle and small scale casting,forging and job.It is suitable for different production scale,can be stand-alone use and many units can also be used in conjunction with the continous conveyor components,composing the production of clean-up lines.
Hook Type Lpg Cylinder Shot Blasting Machine
item | unit | Q376 | Q376B | Q378c | Q3710 | Q3720 | Q3730 | Q3750 | Q37100 |
Maximum weight of cleaning | Kg | 500 | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 10000 |
Abrasive flow rate | Kg/min | 2*200 | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 4*250 |
Ventilation capacity | m3/h | 5000 | 5000 | 5000 | 5000 | 9000 | 11000 | 1400 | 16000 |
Lifting amount of elevating conveyor | T/H | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
Separating amount of separator | T/H | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
Our advantages:
1 | 10 years professional production experience in shot blasting machinery industry. |
2 | 22,000 m^2 production workshop, strong production capacity. |
3 | Professional senior engineer develop the best solution. |
4 | Strict quality control system, CE, BV, ISO9001 certificate available. |
5 | Main components adopt imported international famous brand. |
6 | Timely delivery, one hour to Qingdao port. |
7 | Professional after-sale service, Email will be reply in 24 hours. |
8 | Site installation and commissioning in your factory. |
MOQ: 1set.
Settlement Currency: USD, RMB, EUR.
Trade mode: FOB, CIP, CFR, CIF, DDU, DDP.
Payment term: 30% deposit by T/T, the balance paid before delivery by T/T, or L/C at sight.
Delivery time: Within 5-15 days according to different type machine.
Blast wheel of shot blasting machine
Is the key of the airless shot cleaning equipment,it's logevity, low noise emission etc, enjoy the fame on the market of the world. In the recent years, curve-blade blast wheel which on top of the international
technology had employed us,and direct-driven blast wheels is the largest power in china.
Direct-driven blast wheel of shot blasting machine
Direct-driven blast wheel is one kind of new-design,high efficient blast wheel, beautiful apprearance, compact comfi-guration, low noise, economy and environmental protection, has the largest power and largest rate abrasive flow.
Belt-wheel blast wheel of shot blasting machine
Belt-wheel blast wheel is conventional,large rate abrasive flow and good cleaning effect.It is need part of the airless shot blast cleaning equipment.
Curve-blade blast wheel of shot blasting machine
Curve-blade blast wheel is the most advanced high efficiency on the world at the moment, huge blast speed and area, high-efficiency, uniformclean etc.
1. Installation and commissioning issue: We will send one technician to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
