|Name:||High Speed Steel Profiles Industrial Shot Blasting Machine For Sheet Metal||Material::||Metal / Coil|
|Cleaning Process::||Steel Shot||Function::||Metal Surface Cleaning|
|Weight (KG)::||7000 KG||Spare Parts:||Cr20S High Chrome, ZGMn13, Etc|
|The Advantages:||Compact Structure And High Productivity||Machine:||Roller Conveyor Shot Blasting Machine|
|Exporting Countries:||More Than 70 Countries||Experience:||Over 20 Years Design And Produce Experience|
|Type:||Roller Conveyor||Key Words:||Roller Conveyor Shot Blasting Machine|
Steel Roller Conveyor Shot Blasting Machine,
Plate Roller Conveyor Shot Blasting Machine,
Steel Plate Shot Blasting Machine
Shot Blasting Machine For Clean Cuplock Scaffolding System Like Ledger,Base Jack, U Head , Frame And Other Small Piece

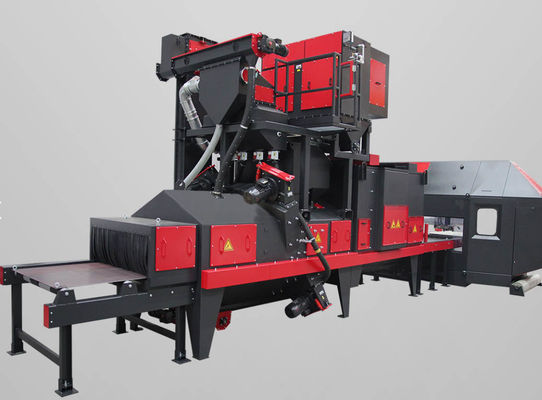

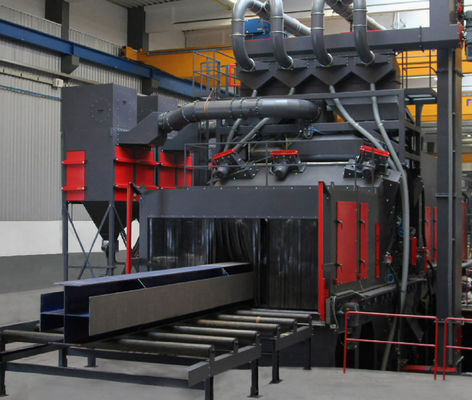

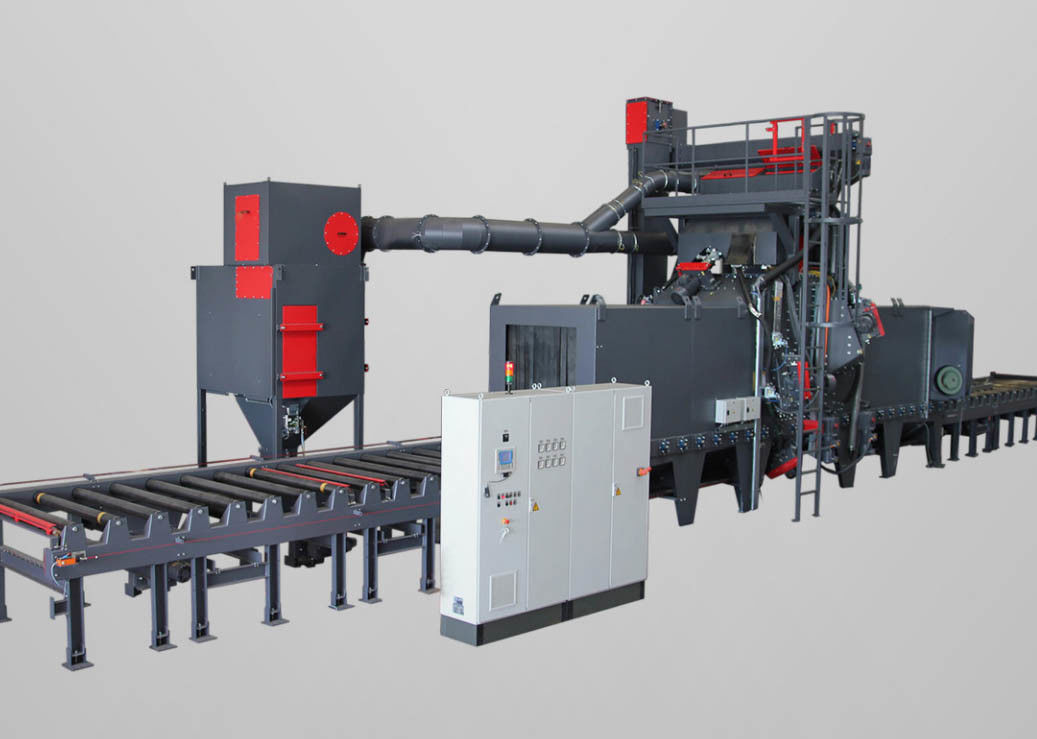

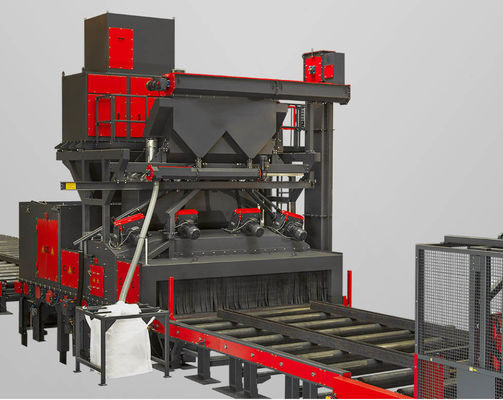

1. Q6910 Shot blasting machine :
Q69 roller pass shot blasting machine is a kind of multi-functional pretreatment equipment for cleaning plate, steel structure, profile, steel pipe and so on.In this way, after the steel is treated by shot blasting, the corrosion resistance of the products and metal components can be improved, the fatigue resistance of the steel plate can be improved, and its service life can be prolonged.
2. Roller conveyor
The roller table is divided into indoor conveying roller table and loading and unloading section conveying roller table (frequency control).
The high chromium wear - resistant sleeve is used to protect the roller table from projectile attack.
Clean up the room
The cleaning room is of large capacity chamber type box structure, and the wall inside the chamber is lined with special wear-resistant protective plate. The cleaning work is carried out in a closed capacity chamber
The bucket elevator consists of cycloidal needle wheel reducer, upper and lower rollers, conveyor belt, hopper, closed barrel, check device and tensioning device.
It is mainly composed of reduction gear, screw conveyor and separation device.Secondary separation function (pure pill, mixed pill and sand mixture) BE curtain structure.
Shot blasting machine
The high efficiency suspension centrifugal shot blasting device is adopted, which is mainly composed of rotating mechanism, impeller, housing, directional sleeve, shot separating wheel and guard plate.
The electrical control system USES the conventional control to realize the control of the whole machine, USES the domestic production of high quality electrical components, has the advantages of high reliability and easy maintenance, etc., the main circuit by miniature circuit breaker and thermal relay to realize the short circuit of each motor, the lack of phase, overload protection.And with an emergency stop switch, convenient emergency shutdown, prevent the expansion of the accident.
Dust removal system
It is equipped with a pulse backblowing cartridge dust collector, which is composed of shell, filter barrel, pulse control instrument, fan and pipe, etc.Dust is discharged in the upper air after being treated by a dust collector, with the emission concentration ≤120mg/m3.
3.Q6910 Shot blasting machine Product Parameters
|1||Max. Workpiece size (L*W*H)||10000*2000*1000 mm|
|2||Chamber open size (W*H)||2200*1200 mm|
|3||Max. Workpiece weight||5T|
|4||Finish level||Can achieve Sa2 .5 (GB8923-88)|
|5||Processing speed||0.5-1.5 m/min (Frequency conversion variable speed)|
|6||Surface roughness||30~75 μ (Depend on abrasive size)|
|Steel cut wire, casting alloy shot: Φ0.5~1.5, abrasive supply valve max. flow: 500 kg/min. Abrasive loss: 0.15-0.25 kg/h/pcs. First loading: ~4000 kg.|
|8||Electric power supply||380V, 3P, 50HZ or customized|
Roller conveyor system
|Motor power||3*2 KW|
|Roller diameter||108 mm|
|Loading capacity||1000 kg/m|
|Roller separation distance||800 mm|
|Transporting speed||0.5-6 m/min (frequency control)|
Shot blasting system
|Blasting chamber||Material of protective area: SPMn13|
|Material of the chamber: Q235|
|Auxiliary chamber||With rubber curtains for sealing the abrasive flying out of the chamber|
|Blasting wheel||Quantity: 10 units|
|Blade structure: Straight line|
|Blasting capacity: 10*180 kg/min|
|Power: 10*11 kw|
|Speed: 76 m/s|
Abrasive reclaim system
Conveying capacity: 120 T/H
Screw diameter: 360 mm
Power: 2*7.5 KW
Quantity: 2 sets
Lifting capacity: 120 T/H
Lifting speed: 1.21 m/s
Power: 11 kw
Quantity: 1 set
Quantity of separation: 120 T/H
Air speed: 4-5 m/s
Power: 7.5 kw
Waste content: ≤1% (Full curtain and flow curtain type multistage winnowing)
Dust removal system
|Filtering material||Polyester coated fitter cartridge|
|Fan power||2*15 kw|
|Total pressure||2000 pa|
|Ventilation volume||26000 m3/h|
|Cartridge quantity||24 pcs-(φ360x1000 mm)|
|Filtering area||360 m2|
|Dust falling way||Automatic back pulse|
|Filtering level||Fireproofing, Prevent spontaneous combustion|
|Filtering accuracy||1 μm|
|Dust emission level||≤80 mg/m3|
|5||Electric control system||PLC, Low voltage electrical components, button|
|6||Noise||≤85 dB (Measure outside workshop)|
|7||Others||Air pressure: 0.5-0.7 Mpa; First loading of steel shot: 4000 kgs (User prepare)|
|8||Total electric power||About 190.5 kw|
