Bucket Excavator Sand Blasting Cabinet Shot Blast Equipment

Bucket Excavator Sand Blasting Cabinet Shot Blast Equipment
Bucket Excavator Sand Blasting Cabinet Shot Blast Equipment

Large Image :  Bucket Excavator Sand Blasting Cabinet Shot Blast Equipment

Product Details:

Place of Origin: China
Brand Name: Qingdao Puhua
Certification: CE
Model Number: Q26

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude
Delivery Time: 30 workdays
Supply Ability: 10 sets per month
Detailed Product Description
Features: High Efficiency, Great Effect, Environmental Protection Max. Workpiece Size: (L*W*H) 7*6*4 M
Max. Workpiece Weight Max: 5T Type: Painting Room
Machine: Painting Booth/spray Booths Exported Countries: The USA, UK, Russia, Australia, UAE, Mexico, Brasil, Etc...
Chamber Material: Steel Plate Or Sandwich Panels
High Light:

Bucket Excavator Sand Blasting Cabinet

,

Steel Plate Sand Blasting Cabinet

,

Shot Blast Equipment Painting Booth

Machinery Accessories Bucket Excavator Shot Blast Equipment Sand Blasting Cleaning Cabinet

Customizable Recovery Sand Blasting Booth

Automotive electrostatic car painting equipment/booth Product description:
Painting/Spray booth provides a closed environment for vehicles painting with pressure controlling.
As we know that dust free, appropriate temperature and wind speed are necessary for painting. Then this spray booth can provide a relatively ideal painting environment; this can be controlled by several groups of ventilation, heating system and filtering system etc. Heated air produced by the burner can help the spray booth to hold a suitable temperature, air flow and illumination. We can provide rock wool wallboard, EPS wallboard, electric heating, diesel heating, natural gas heating, all kinds of filtration systems. We can also design a suitable spary booth for you
according to your actual site.

Automotive electrostatic car painting equipment/booth Product parameter:

1
Painting room size
18000×4500×5000mm
2
Door size
3500x3500mm
3
Safety door size(W*H)
700x2000mm
4
Installed power
About 49kw
5
Electric power supply
380V,50HZ 3P or customer requirement
6
Electric control system
Control cabinet, zhengtai electrical appliances, consoles, wires and cables, etc
7
Pit Required
waterproof




Bucket Excavator Sand Blasting Cabinet Shot Blast Equipment 0



5.1. Specific content and composition:
The painting room is mainly composed of chamber, air purification and filtration system, paint and fog treatment system, lighting system and electrical control system.

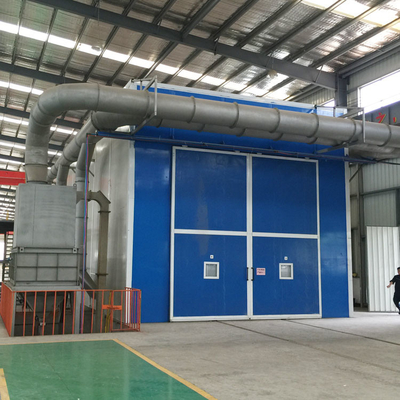

5.1.1 painting room body

The shell of the painting room is made of color steel plate and section steel, which is a solid, sealed and spacious operating space for painting the workpiece. The painting room is composed of left and right side walls, rear side walls, top plate, top air filter system, gate, security door and so on. Supply air at the top and exhaust at the bottom. The spray booth is equipped with a total of 24 sets of LED lights (protected by tempered glass).


5.1.2 Air supply system
The air supply system is mainly composed of a blower, a fan base and a steel frame. The fan base is provided with a shock absorber for sound attenuation. The paint spraying room adopts the airflow organization method of up-down and down-suction, and the air supply system is composed of a blower unit and an air supply duct. The blower unit is placed on the top floor, and is supported by welding of square pipes and steel plates. The static pressure chamber uses F5 equalizing top cotton. The air is filtered and purified by high-efficiency filter cotton under the action of the blower, and the clean air is sent into the spray booth.

5.1.3 Paint mist filtering system
The paint mist filter system includes dry paint mist filter box, activated carbon adsorption box, UV photocatalysis, fan, pipe, chimney (chimney height 15M), etc. This system complies with GBJ4-73 industrial "three wastes" emission standards, and the main fan power is 22kwX2 units.


5.1.4 Electrical system
The electrical control system is suitable for a three-phase AC 50HZ voltage 380V distribution circuit. (You can also configure the electric panel according to the current status of the user's electricity)
This machine is a manual button control operation method. The low-voltage electrical components are all Chint or Delixi products. The electrical system of this machine has the following characteristics:
Maintenance doors and paint mist filter systems are equipped with electrical interlocking and self-locking mechanisms to ensure the reliable operation of the equipment and the safety of operators.

Automotive electrostatic car painting equipment/booth Product Detail:

OEM/ODM

We are committed to maintaining our position as the pioneers of our industry.With our own facilities, we can work on your OEM/ODM projects.



Bucket Excavator Sand Blasting Cabinet Shot Blast Equipment 1

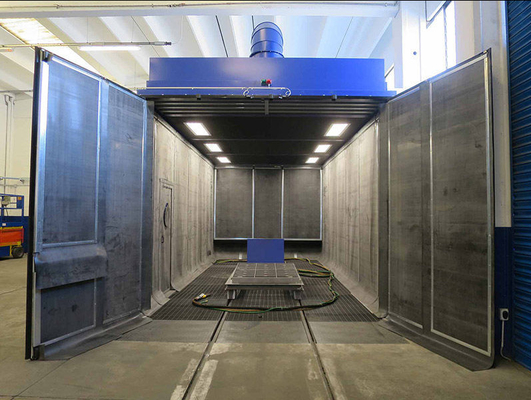

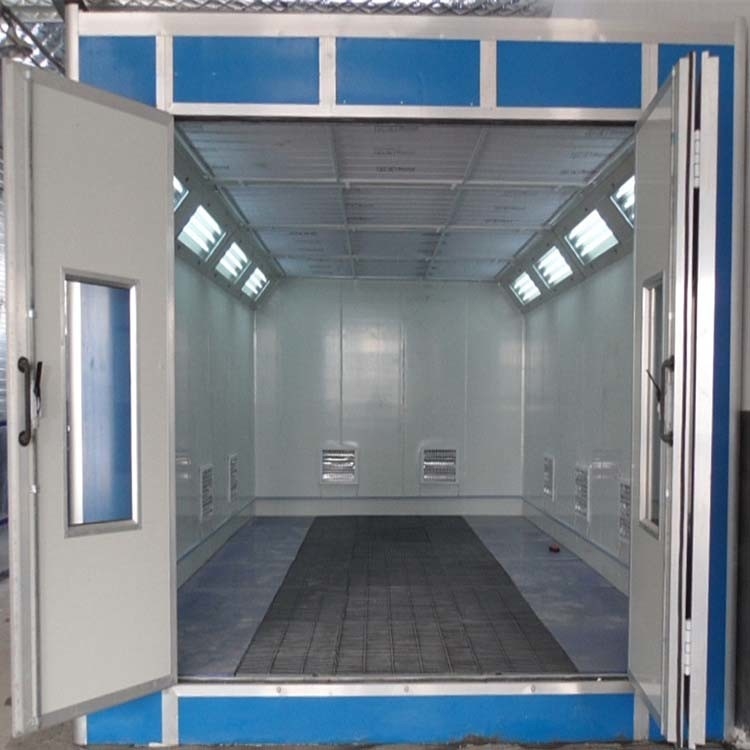

Painting room chamber

Each Painting room is tailor made for the specific requirement of each



Bucket Excavator Sand Blasting Cabinet Shot Blast Equipment 2



Customizable trolley system

The trolley load-bearing is 10T.total length of rail is 35 m. To prevent the projectile wheel stuck phenomenon, there are polyurethane scraper in front of each wheel to strike off scattered abrasive on the track.



Bucket Excavator Sand Blasting Cabinet Shot Blast Equipment 3

Bucket Excavator Sand Blasting Cabinet Shot Blast Equipment 4

Bucket Excavator Sand Blasting Cabinet Shot Blast Equipment 5

Bucket Excavator Sand Blasting Cabinet Shot Blast Equipment 6

Bucket Excavator Sand Blasting Cabinet Shot Blast Equipment 7
