High Performance Tumble Shot Blasting Machine For Small Metal Parts And Castings

Good quality Roller Conveyor Shot Blasting Machine for sales
Good quality Roller Conveyor Shot Blasting Machine for sales
I'm Online Chat Now

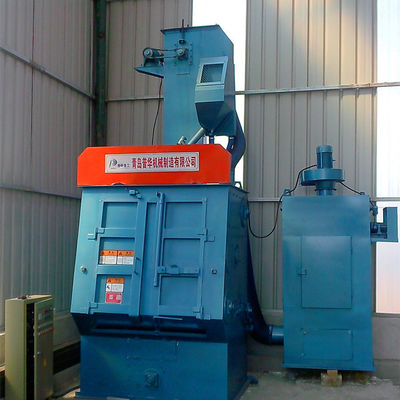

High Performance Tumble Shot Blasting Machine For Small Metal Parts And Castings

China High Performance Tumble Shot Blasting Machine For Small Metal Parts And Castings supplier
High Performance Tumble Shot Blasting Machine For Small Metal Parts And Castings supplier High Performance Tumble Shot Blasting Machine For Small Metal Parts And Castings supplier High Performance Tumble Shot Blasting Machine For Small Metal Parts And Castings supplier

Large Image :  High Performance Tumble Shot Blasting Machine For Small Metal Parts And Castings

Product Details:

Place of Origin: China
Brand Name: Qingdao Puhua
Certification: CE
Model Number: Q32

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Stretch film
Delivery Time: 7-20 days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Machine: Tumble Belt Shot Blasting Machine Type: Tumble Belt
Loading: Container Industrial Experience: Over 20 Years
Usage: Surface Cleaning Belt: Rubber Belt
Certification: ISO CE Condition: New

Q32 Tumble Belt Shot Blasting Machine for Small Metal Parts and Castings



Q3210 series pedrail tumble belt type shot blasting cleaning machine



Technical parameter :



This series is used for surface cleaning ,rust romoving,and surface intensification of each kind of middle and small scale casting,forging and so on. It is suitable for diffenent production scale,can be standalone use and many units can also be used in conjunction continuous conveyor components, composing the production of clean-up lines.

Q32 series abrade cleaning up machinehas the advantages of advanced design,reasonable structure small energy consumption and high efficiency.

High Performance Tumble Shot Blasting Machine For Small Metal Parts And Castings



type



parameter

Q326 Q3210 QR3210
Producitivity (T/H) 0.6-1.2 3-5 1.5-2.5
Loading weight (KG) 200 800 600

The maximum weight of

one piece (KG)

10 15 30
Diameter of roller (MM) 650mm 1000mm 1000mm
Available capacity (M3) 0.15 0.4 0.3
Blasting capacity (KG/MIN) 100 250 250
Dedusting air volume (M3/H) 2200 6000 5000
Power consumption (KW) 12.6 32.6 24.3
Appearance dimension (MM) 3681*1650*5800



3644*2926*5856



3972*2600*4768

Total weight of machine (KG) 2340kgs 5843kgs

7400kgs
