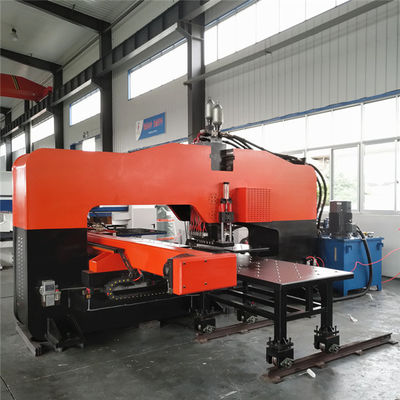

Mechatronics CNC Sheet Metal Punching Machine For Chassis Cabinets Processing

China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
I'm Online Chat Now

Mechatronics CNC Sheet Metal Punching Machine For Chassis Cabinets Processing

Mechatronics CNC Sheet Metal Punching Machine For Chassis Cabinets Processing
Mechatronics CNC Sheet Metal Punching Machine For Chassis Cabinets Processing Mechatronics CNC Sheet Metal Punching Machine For Chassis Cabinets Processing Mechatronics CNC Sheet Metal Punching Machine For Chassis Cabinets Processing

Large Image :  Mechatronics CNC Sheet Metal Punching Machine For Chassis Cabinets Processing

Product Details:

Place of Origin: China
Brand Name: Qingdao AMD
Certification: CE
Model Number: AMD-357

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Stretch film
Delivery Time: 35 workdays
Payment Terms: L/C, T/T
Supply Ability: 15 sets per month
Detailed Product Description
Machine: CNC Punching Machine Warranty: One Year
System: Siemens / Fanuc Station: 16 / 24 / 32
High Light:

cnc turret punching machine

,

cnc turret press

Siemens Mechanical CNC Turret Punching Machine For Sheet Metal Hole Punching





CNC punching machine application:
CNC turret punching machine is mechatronics automation equipment, it's widely used in the chassis cabinets processing, air conditioners, refrigerators, range hood, instruments and meters, electric control cabinet panels, battery plate, building decorative materials, auto parts, silencing plate, lamps, kitchen equipment, and other sheet metal processing industries.

Machinery main details:
1. Germany Siemens System;
2. Standard 80mm Ductile Iron Thick Turret Disc;
3. Taiwan Ball Screw & Linear Guide;
4. International electrical components;
5. Secondary positioning system;
6. Well-known Standard Tools.

AMD-357 CNC turret punch press feature:
1. Adopts Siemens 3/4 axis CNC special system and match up digital AC servo motor to make it fast and reliable;
2. Fuselage is O type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation;
3. With the second positioning function, can achieve without dead zone processing;
4. The transmission system use the international brand with high precision, big guide the ball screw, linear guide rail are high precision and good performance;
5. Main pneumatic components, electric components and transmission adopt perfectly;
6. Use standards casting integrated thick turret mold disc and standards internationally general thick molds.

Main Technical Specification:

Specification Unit AMD-357 AMD-SE2510 AMD-255/AMD-2510
Transmission mode / Hydraulic Mechanical Servo motor Mechanical
Punch force KN 300 200 250
Power rating KW 20 11 30 11
Processing sheet size mm 2500*1250
Processing sheet thickness mm ≤6 ≤4 ≤3 ≤4
Max. Punch diameter mm Ø88.9
Sheet moving speed m/min 40 80 40
Punching frequency hpm 600 300 900 300
Hole accuracy mm ±0.1
Number of stations in turret No. 16/24/32
Turret speed rpm 30 60 30
Controlled axis No. 3/4 3/4 5 3/4
Rotating location No. 0/2 0/2 1-2 0/2
Air pressure Mpa ≥0.8
Outline Dimension mm 4490*5300*2110 4910*3300*2225
Machine Weight T 12 11 13 10


Notice:
According to your requirements, the most suitable machines will be designed for your workpieces, please indicate the following details.
1. Please tell us your metal sheet material.
2. The workpiece dimension (including length, width and thickness).
3. The information of hole shapes and hole diameter that you want to punch.
4. It's my pleasure if you can send some photos or drawings of your products for our reference.

Based on these details information, the detailed technical proposals will be sent to you for reference.

After-sele service:
1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer should pay for their return tickets, hotel and diet.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from B/L date.
3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience : Many countries, such as Egypt, Qatar, UAE, India, Venezuela, Algeria, Sudan, Paraguay, Costa Rica, etc.


Shipping terms FOB, CFR, CIF, DDP, FCA, Turnkey, etc
Package Standard container with stretch film.
Payment T/T, L/C. 30% deposit, 70% balance before delivery
Delivery time 20-35 workday
