Qingdao Puhua Heavy Industrial Machinery Co., Ltd.
Home ProductsShot Blasting Machine

Industrial Professional Sandblasting Equipment Pass Through Type Blue Color

China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
I'm Online Chat Now

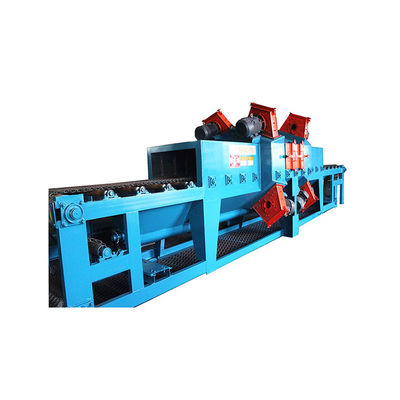

Industrial Professional Sandblasting Equipment Pass Through Type Blue Color

Industrial Professional Sandblasting Equipment Pass Through Type Blue Color
Industrial Professional Sandblasting Equipment Pass Through Type Blue Color

Large Image :  Industrial Professional Sandblasting Equipment Pass Through Type Blue Color

Product Details:

Place of Origin: CHINA SHANDONG
Brand Name: puhua
Certification: ISO CE
Model Number: QWG

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 35days
Supply Ability: 200 sets/year
Detailed Product Description
Name: Shot Blasting Machine Workpipece: Steel Plate,small Steel Structure
Color: Blue Blasting Wheel: 6 Pieces
Shot Blast Machine: Pass-through
High Light:

automatic blasting machine

,

steel shot blasting machine

High Quality QWD Series Wire Mesh Belt Shot Blasting Machine / Cleaning Equipment For Auto Parts

Product Description


PUHUA offers a wide variety of wheel blast equipment in several configurations. Mesh belt machines have become one of the more popular systems. A key advantage with a mesh belt machine is that the parts are exposed to the blast wheels from above and below. Nearly complete coverage is achieved without the necessity of re-orienting the parts given they are transported on a wire mesh belt.In-line unit type,parts are placed on an endless wire mesh belt and conveyed through a tunnel with multiple blast wheels. Parts can either be manually or automatically loaded and unloaded depending on your process requirements. It is good candidates for parts where part on part impingement is unacceptable.

Industrial Professional Sandblasting Equipment Pass Through Type Blue Color 0
Industrial Professional Sandblasting Equipment Pass Through Type Blue Color 1

Technical parameters
No.
Item
Unit
Data
1
Machine overall dimensions (L*W*H)
MM
About 7000 x 2870 x 5400
2
Height from ground to mesh belt
MM
1400
3
Feeding entrance size (Width*Height)
MM
1000*500
4
Max. loading weight of single workpiece
KG
65
5
Cleaning speed
m/min
1~2.5 (according to different cleaning requirements can be adjusted by stepless frequency conversion
6
Rust removal standard

Sa2.5
7
Dealing with material and intensity range

Steel,Stainless,Aluminum,etc
8
Surface roughness
μ
20~75(depends on the shot size)
9
Total power
KW
About 53.1
10
Compressed air consumption
m³/min
0.3
11
Compressed air pressure
MPa
0.5-0.7
12
Foundation

No pit, waterproof
13
Noise level
dB
≤95



Shot blasting sample

Industrial Professional Sandblasting Equipment Pass Through Type Blue Color 2

Industrial Professional Sandblasting Equipment Pass Through Type Blue Color 3
