Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization

China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
I'm Online Chat Now

Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization

Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization
Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization

Large Image :  Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization

Product Details:

Place of Origin: China
Brand Name: Qingdao AMD
Certification: CE
Model Number: AMD-357

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Stretch film
Delivery Time: 35 workdays
Payment Terms: L/C, T/T
Supply Ability: 15 sets per month
Detailed Product Description
System: Siemens / Fanuc Type: Cnc Mechanical Punch Machine
Warranty: One Year Machine: CNC Punching Machine
Station: 16 / 24 / 32 Color: Customizable
High Light:

cnc turret punching machine

,

cnc turret press

High Material Utilization CNC Sheet Metal Mechanical Punching Machine
Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization 0

CNC turret punching machine is mechatronics automation equipment, it's widely used in the chassis cabinets processing, air conditioners, refrigerators, range hood, instruments and meters, electric control cabinet panels, battery plate, building decorative materials, auto parts, silencing plate, lamps, kitchen equipment, and other sheet metal processing industries.

Machinery main details:

1. Germany Siemens System;
2. Standard 80mm Ductile Iron Thick Turret Disc;
3. Taiwan Ball Screw & Linear Guide;
4. International electrical components;
5. Secondary positioning system;
6. Well-known Standard Tools.

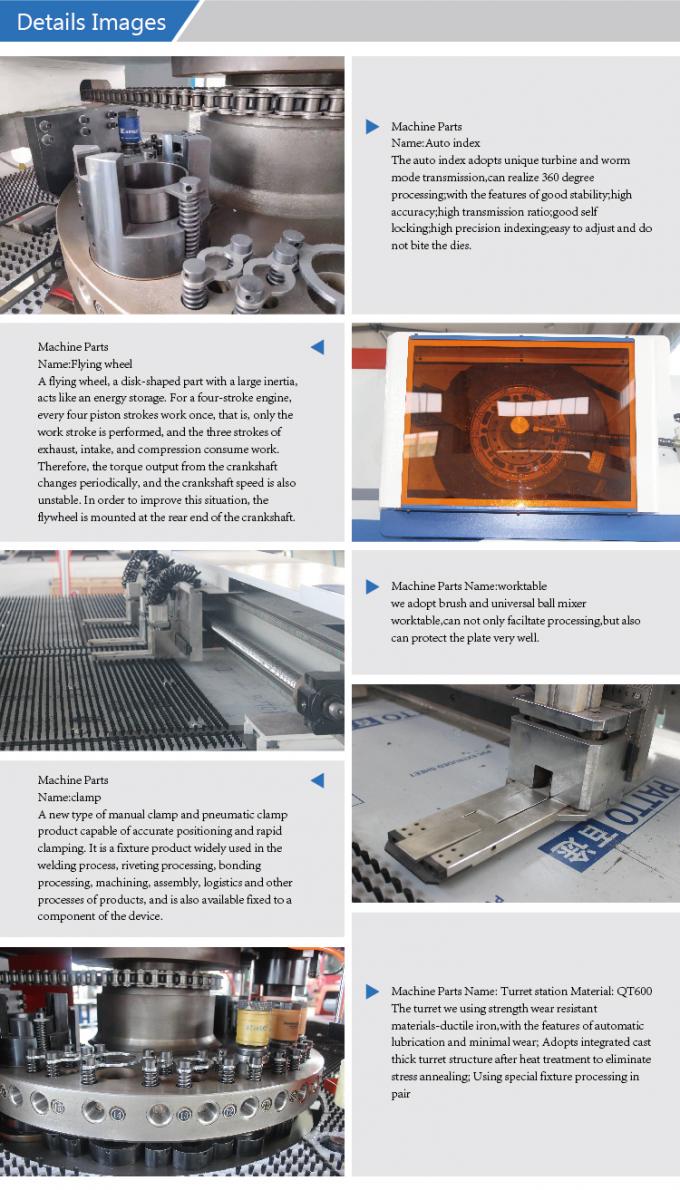

AMD-357 CNC turret punch press feature:
1. Adopts Siemens 3/4 axis CNC special system and match up digital AC servo motor to make it fast and reliable;
2. Fuselage is O type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation;
3. With the second positioning function, can achieve without dead zone processing;
4. The transmission system use the international brand with high precision, big guide the ball screw, linear guide rail are high precision and good performance;
5. Main pneumatic components, electric components and transmission adopt perfectly;
6. Use standards casting integrated thick turret mold disc and standards internationally general thick molds.

Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization 1

SpecificationUnitAMD-357AMD-SE2510AMD-255/AMD-2510
Transmission mode/HydraulicMechanicalServo motorMechanical
Punch forceKN300200250
Power ratingKW20113011
Processing sheet sizemm2500*1250
Processing sheet thicknessmm≤6≤4≤3≤4
Max. Punch diametermmØ88.9
Sheet moving speedm/min408040
Punching frequencyhpm600300900300
Hole accuracymm±0.1
Number of stations in turretNo.16/24/32
Turret speedrpm306030
Controlled axisNo.3/43/453/4
Rotating locationNo.0/20/21-20/2
Air pressureMpa≥0.8
Outline Dimensionmm4490*5300*21104910*3300*2225
Machine WeightT12111310


Notice:
According to your requirements, the most suitable machines will be designed for your workpieces, please indicate the following details.
1. Please tell us your metal sheet material.
2. The workpiece dimension (including length, width and thickness).
3. The information of hole shapes and hole diameter that you want to punch.
4. It's my pleasure if you can send some photos or drawings of your products for our reference.

Based on these details information, the detailed technical proposals will be sent to you for reference.

Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization 2
Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization 3
Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization 4
Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization 5
Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization 6
Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization 7
Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization 8
Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization 9
Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization 10
Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization 11
Reliable Stable CNC Sheet Metal Punching Machine High Material Utilization 12
1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer should pay for their return tickets, hotel and diet.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from B/L date.
3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience : Many countries, such as Egypt, Qatar, UAE, India, Venezuela, Algeria, Sudan, Paraguay, Costa Rica, etc.



Shipping termsFOB, CFR, CIF, DDP, FCA, Turnkey, etc
PackageStandard container with stretch film.
PaymentT/T, L/C. 30% deposit, 70% balance before delivery
Delivery time20-35 workday
