Qg Series Shot Blast Cleaning Machine Steel Pipe Inner And Outer Wall Customized Power

Qg Series Shot Blast Cleaning Machine Steel Pipe Inner And Outer Wall Customized Power
Qg Series Shot Blast Cleaning Machine Steel Pipe Inner And Outer Wall Customized Power

Large Image :  Qg Series Shot Blast Cleaning Machine Steel Pipe Inner And Outer Wall Customized Power

Product Details:

Place of Origin: China
Brand Name: Qingdao Puhua
Certification: CE
Model Number: QGW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Stretch film
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per month
Detailed Product Description
Warranty: One Year Power(W): Customized
Dust Collector Material: Needled Felt Bag Or Cartridge Filter Type: Steel Tube/pipe Cleaning Machine
Fuel: Electric Model Number: QGW
Spare Parts: Cr20S High Chrome, ZGMn13 Cleaning Type: Shot Blasting
Machine: Steel Pipe Shot Blasting Machine
High Light:

pipe sandblasting equipment

,

pipe sand blasting machine

Roller Conveyor Type Steel Pipe Shot Blasting Machine



Qg Series Shot Blast Cleaning Machine Steel Pipe Inner And Outer Wall Customized Power 0

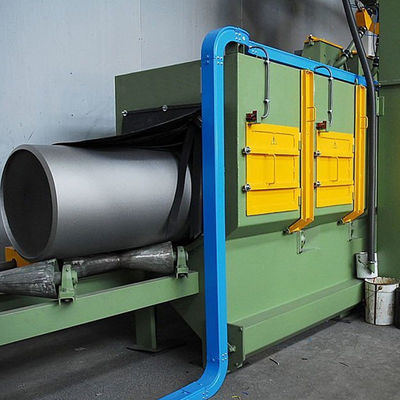

QG series steel pipe inner and outer wall shot blasting machine for surface treatment , wiping up the oxide coating , welding slag , appearing the metallic sheen , increasing the area of the surface , which is in favor of UV. It applies in the line of petroleum & chemical , steel , city centralized heating , centralized drainage etc.



Qg Series Shot Blast Cleaning Machine Steel Pipe Inner And Outer Wall Customized Power 1

Item Model QG30 QG80 QG150
Dimension of cleaning workpiece(mm) Φ50-¢500*(6000-10000) Φ150-¢800*(6000-8000) Φ(250-15000)*10000
Roller speed(m/min) 1.0-3.0 0.5-2.5 860mm/min
Blast wheel Abrasive flow rate(kg/min) 2*250 2*250 2*350
Power(kw) 2*15 2*15 2*30
Dust collector Model BC-36 BC-48 BC-42
Ventilation capacity(m3/h) 5000-7000 8000-14500 8000-11000
Total power(excluding dust collector)(kw) 49.45 53.77 76.25
Overall dimension(excluding dust collector) (15000-22000)*3100*5400 (18000-24000)*3850*6800 (24000*2265)*4986



Advantage:



a. High quality surface appearance

b. High productivity efficiency

c. Low cost

d. Environmental friendly

Qg Series Shot Blast Cleaning Machine Steel Pipe Inner And Outer Wall Customized Power 2

Qg Series Shot Blast Cleaning Machine Steel Pipe Inner And Outer Wall Customized Power 3

Qg Series Shot Blast Cleaning Machine Steel Pipe Inner And Outer Wall Customized Power 4

Qg Series Shot Blast Cleaning Machine Steel Pipe Inner And Outer Wall Customized Power 5

Qg Series Shot Blast Cleaning Machine Steel Pipe Inner And Outer Wall Customized Power 6

Qg Series Shot Blast Cleaning Machine Steel Pipe Inner And Outer Wall Customized Power 7
