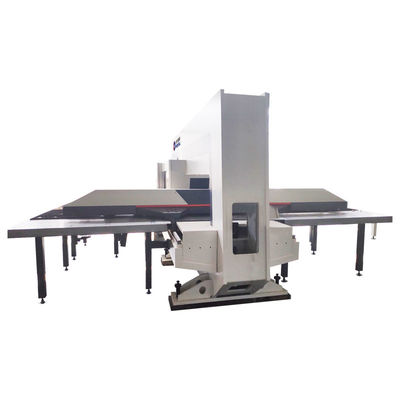

600hpm Frequency Servo Punch Press Sheet Metal Punching Machine 3 - 4 Control Axis

All Products
Shot Blasting Machine (48)
Roller Conveyor Shot Blasting Machine (82)
Hook Type Shot Blasting Machine (65)
Tumble Shot Blasting Machine (57)
Hanger Type Shot Blasting Machine (30)
Sand Blasting Room (76)
Servo Punch Press (54)
CNC Hydraulic Punching Machine (48)
Steel Pipe Shot Blasting Machine (56)
Wire Mesh Shot Blasting Machine (12)
Concrete Shot Blasting Equipment (53)
CNC Sheet Metal Punching Machine (27)
CNC Punching Machine (71)
Shot Blasting Machine Parts (26)
Industrial Dust Collector (11)
Green Sand Moulding Machine (5)
Sand Casting Foundry (1)
CNC Fiber Laser Cutting Machine (2)
China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
I'm Online Chat Now

600hpm Frequency Servo Punch Press Sheet Metal Punching Machine 3 - 4 Control Axis

600hpm Frequency Servo Punch Press Sheet Metal Punching Machine 3 - 4 Control Axis
600hpm Frequency Servo Punch Press Sheet Metal Punching Machine 3 - 4 Control Axis

Large Image :  600hpm Frequency Servo Punch Press Sheet Metal Punching Machine 3 - 4 Control Axis

Product Details:

Place of Origin: China
Brand Name: Qingdao AMD
Certification: CE
Model Number: AMD-357

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Stretch film
Delivery Time: 35 workdays
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Power Source: Servo Warranty: One Year
Control Axis: 3-4 Condition: New
Power Rating: 20kw Type: Servo Type Punch Machine
CNC Or Not: CNC Punching Frequency: 600hpm
High Light:

turret punch press machine

,

amada turret punching machine

High Quality CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency





Product Description



· Equipped Fanuc 5 axis CNC system, Fanuc CNC punch servo module, can realize 5 axis control at the same time.
· Equipped with USB, R232 communication interface which can realize the front desk, backstage programming.
· Fuselage is O type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation. · Equipped high strength nodular cast iron to cast into integral thick turret mold plate, thickness is 80mm, through heat treatment to get rid of internal stress, rigid good, precision stability, impact resistant ability good; greatly improving mold service life. · Equipped with high precision servo initiative transmission system, speed is faster and stroke is adjustable. · With the second positioning function, can achieve processing without dead zone. · The transmission system use original Taiwan brand with high precision, big guide the ball screw, linear guide rail are high precision and good performance. ·Main pneumatic components, electric components, hydraulic components and transmission components adopt international well-known brand product, which makes the punch work perfectly.
· Equipped with concentrated lubricating device, reduce friction and improve service life. ·Equipped with 2 sets of
auto-index station, can easily punch holes with different degrees.

Product Paramenters

Specification
Unit
Specification model
Punch Force
KN
200
300


Max.Processing Size

mm
1250*1250
1250*1250
1250*2500
1250*2500
1250*5000
1250*5000
Max.Sheet Thickness
mm
4
6
Punching Frequency
hpm
1600
1600
Max.Sheet Traversing Speed
m/min
80
80
Turret Speed
rpm
40
40
Hole Accuracy
mm
±0.1
±0.1
Max Punch Diameter
mm
φ88.9
φ88.9
Number of stations in turret
No.
24/32
24/32
Air Pressure
mpa
0.8
0.8
Controlled Axis
No.
4(X,Y,C,A)
4(X,Y,C,A)
Prower Rating
KW
30
35
Outline Dimension
mm
4490*53300*2110
4490*5300*2110
Machine Weight
T
13
14



Workshop situation:



600hpm Frequency Servo Punch Press Sheet Metal Punching Machine 3 - 4 Control Axis 0

600hpm Frequency Servo Punch Press Sheet Metal Punching Machine 3 - 4 Control Axis 1

600hpm Frequency Servo Punch Press Sheet Metal Punching Machine 3 - 4 Control Axis 2

600hpm Frequency Servo Punch Press Sheet Metal Punching Machine 3 - 4 Control Axis 3
