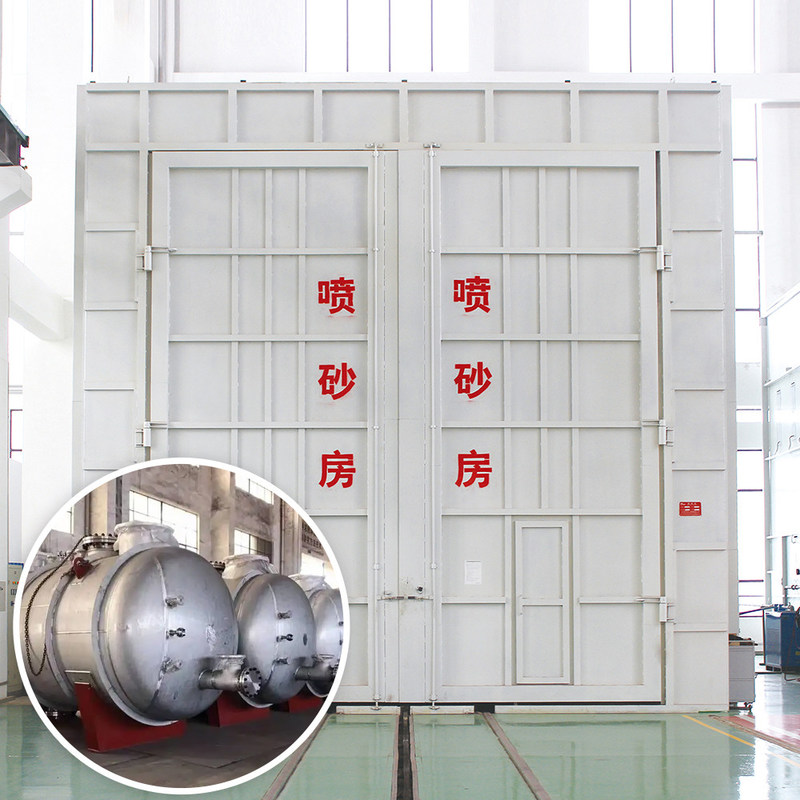

|Color:||Customized||Name:||Shot Blasting Room For Steel And Alloy Surface Cleaning|
|Type:||Sand Blasting Room||Service System:||Field Installation, Commissioning And Training|
|Applicable Industry:||Work Pieces Cleaning Rust Remove|
laser cutting machine fiber,
fiber laser kit,
laser machine 1000w
5.1. Specific content and composition:
The painting room is mainly composed of chamber, air purification and filtration system, paint and fog treatment system, lighting system and electrical control system.
5.1.1 painting room body
The shell of the painting room is made of color steel plate and section steel, which is a solid, sealed and spacious operating space for painting the workpiece. The painting room is composed of left and right side walls, rear side walls, top plate, top air filter system, gate, security door and so on. Supply air at the top and exhaust at the bottom. The spray booth is equipped with a total of 24 sets of LED lights (protected by tempered glass).
5.1.2 Air supply system
The air supply system is mainly composed of a blower, a fan base and a steel frame. The fan base is provided with a shock absorber for sound attenuation. The paint spraying room adopts the airflow organization method of up-down and down-suction, and the air supply system is composed of a blower unit and an air supply duct. The blower unit is placed on the top floor, and is supported by welding of square pipes and steel plates. The static pressure chamber uses F5 equalizing top cotton. The air is filtered and purified by high-efficiency filter cotton under the action of the blower, and the clean air is sent into the spray booth.
5.1.3 Paint mist filtering system
The paint mist filter system includes dry paint mist filter box, activated carbon adsorption box, UV photocatalysis, fan, pipe, chimney (chimney height 15M), etc. This system complies with GBJ4-73 industrial "three wastes" emission standards, and the main fan power is 22kwX2 units.
5.1.4 Electrical system
The electrical control system is suitable for a three-phase AC 50HZ voltage 380V distribution circuit. (You can also configure the electric panel according to the current status of the user's electricity)
This machine is a manual button control operation method. The low-voltage electrical components are all Chint or Delixi products. The electrical system of this machine has the following characteristics:
Maintenance doors and paint mist filter systems are equipped with electrical interlocking and self-locking mechanisms to ensure the reliable operation of the equipment and the safety of operators.
We are committed to maintaining our position as the pioneers of our industry.With our own facilities, we can work on your OEM/ODM projects.
Painting room chamber
Each Painting room is tailor made for the specific requirement of each
Customizable trolley system
The trolley load-bearing is 10T.total length of rail is 35 m. To prevent the projectile wheel stuck phenomenon, there are polyurethane scraper in front of each wheel to strike off scattered abrasive on the track.
