Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type

China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
China Qingdao Puhua Heavy Industrial Machinery Co., Ltd. certification
I'm Online Chat Now

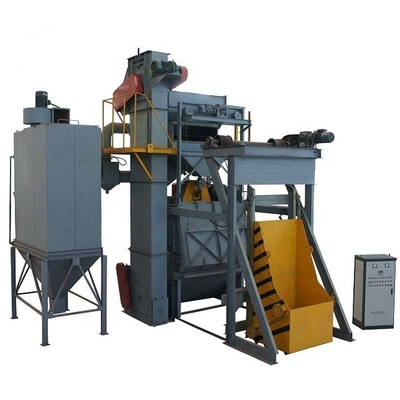

Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type

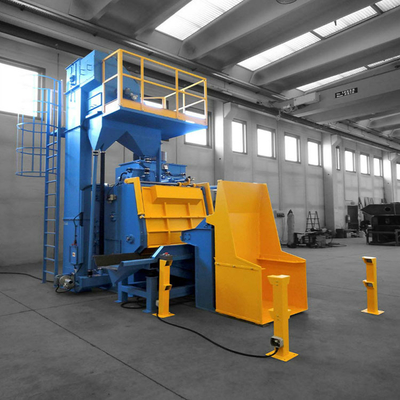

Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type

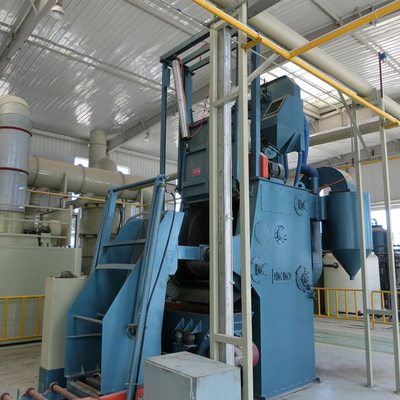

Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type

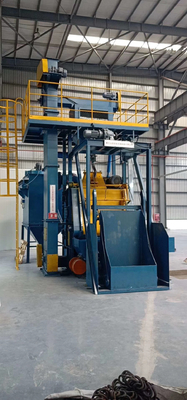

Large Image :  Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type

Product Details:

Place of Origin: China
Brand Name: Qingdao Puhua
Certification: CE
Model Number: Q32

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Stretch film
Delivery Time: 7-20 days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Detailed Product Description
Application:: Steel Structure Shot Blasting Rust Remove Cleaning Process:: Steel Shot
Type: Shot Blasting Machine Machine: Tumble Belt Shot Blasting Machine
Color: Customers Requirement
High Light:

Rust Remove Belt Shot Blasting Machine

,

Q32 Tumble Belt Shot Blasting Machine

,

Rust Remove Tumble Shot Blasting Machine

Q32 Type Full Automatically Small Tumble Belt Shot Blasting Machine

China Q32 Tumble Belt Tracked Type Shot Blasting Machine For small wokrpieces cleaning rust remove





Q32 Type Tumble Belt Shot Blasting Machine Product description:


1. Application



Tumble rubber belt type shot blasting machine is blast cleaning equipment for casting parts, forging parts and small fabricated metal work pieces.
Tumble belt rotates with work pieces on it at the bottom of blasting chamber. Blasting wheels on top blast steel shots and grits on work pieces. Left and right chamber are protected by alloy liners.
Tumble belt can be rubber or metal.



2 Components and function

Q3210 shot blasting machine consists of blasting system, blasting chamber, abrasive circulation system (separator, bucket elevator, screw conveyor), dust collection system and electric control system. The surface finish level is Sa2.5.



2.1 Shot blasting system

Shot blasting system consists of blasting chamber and shot blasting machine assembly. The abrasive media like the steel shots, grits are applied on the metal surface driven by the centrifugal force from the blades. Workpieces will be de-rusted, cleaned and roughened in blasting system to reach customer’s finishing level.



2.2 Blasting chamber

Blasting chamber is welding structure, inside has rubber belt and drive mechanism, at the bottom of the chamber has a screw conveyor, indoor adopts wear-resisting guard protection, blast wheel fixed on the top of the chamber. In the blasting chamber, the end disk is protected by ZGMn13 material, which has high wear resistant performance. Prolong service life, reduce the cost and reduce maintenance frequency.


 Q32 Type Tumble Belt Shot Blasting Machine Product Paramters:


Tumblast shot blasting machine specification:


Item Unit Q326 Q3210
Productivity kg/h 600-1200 2500-3500
Feeding amount Kg 200 800
Maximum weight of single piece Kg 15 30
End plate diameter mm 650 1000
Effective volume m3 0.33 1.05
Abrasive flow rate Kg/min 200 250
Dust removal air volume m3/h 2500 4000
Power consumption kw 13.6 25.6
Outside dimension mm 3200*1650*3800 4290*1950*4500



1 Belt transmission system Speed 0.1 m/s; 3.5 rpm
    Motor power 3kw







2







Shot blasting system



Blasting chamber

Material of protective disk: ZGMn13
      Material of the chamber: Q235






Blasting wheel

Wheel quantity: 1 unit
      Blade structure: Straight line
      Blasting capacity: 180 kg/min
      Power: 11 kw
      Speed: 76 m/s









3









Abrasive reclaim system



Screw conveyor

Conveying capacity: 15 T/H

Screw diameter: 250 mm

Qty: 1 set





Bucket elevator

Lifting capacity: 15 T/H

Lifting speed: 1.21 m/s

Power: 1.5 kw

Qty: 1 set





Spiral trommel separator

Quantity of separation: 15 T/H

Air speed: 4-5 m/s

Waste content: ≤1% (Full curtain and flow curtain type multistage winnowing)

Qty: 1 set











4











Dust removal system

Filtering material Polyester coated fitter cartridge
    Fan power 4 kw
    Total pressure 1890 pa
    Ventilation volume 5600 m3/h
    Filter cartridge quantity 4 pcs
    Filtering area 60 m2
    Dust falling way Automatic back pulse
    Filtering accuracy 1 μm
    Back Pulse Quantity 2 pcs
    Dust emission level ≤90 mg/m3
5 Electric control system One-button operation system, cables, low-voltage electric, automatic fault detection and alarm function, etc
6 Noise ≤90 dB
7 Total electric power About 19.5 kw
8 Production time 20 days


Q32 Type Tumble Belt Shot Blasting Machine Product Features:



High wear-resistant lining
Lining of high manganese wear-resistant steel plate, more thicker guard board, frame more stronger, longer life time
Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 0

Turbine blast wheels
Abrasive distributor, and control cage is high chrome, Special material blades made in Taiwan, Has a long service life.
Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 1
Electric control system
Equipped with electric interlocking and self-locking systems to ensure the reliable operation of the equipment and the safety of operators.



Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 2



Q32 Type Tumble Belt Shot Blasting Machine Product application:



Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 3



Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 4

Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 5

Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 6

Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 7

Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 8



1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet, etc Customer need arrange 3-4 skilled worker and prepare insallation machinery and tools.



2. Warranty time: 12 months from date of commissioning completion, but no more than 18 months from date of delivery.

3. Supply full English documents: including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.



Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 9

Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 10

Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 11

Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 12

Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 13Full Automatically Tumble Belt Shot Blasting Machine Rust Remove Q32 Type 14


Why us?
1.Owned factory, better quality control
2.Rich experienced in manufacturing and exporting
3.Competitve price and reliable oversea after-sale network
Notice
According to your requirements, the most suitable machines will be designed for your work piece, please indicate the following details.
A. What kind of work piece will you clean?
B. The work piece diameter(length, width, height) and weight of maximum work piece.
C. How many work pieces you want to clean per day/month?
Based on above detail information, the detailed technical proposals will be sent to you for reference.
